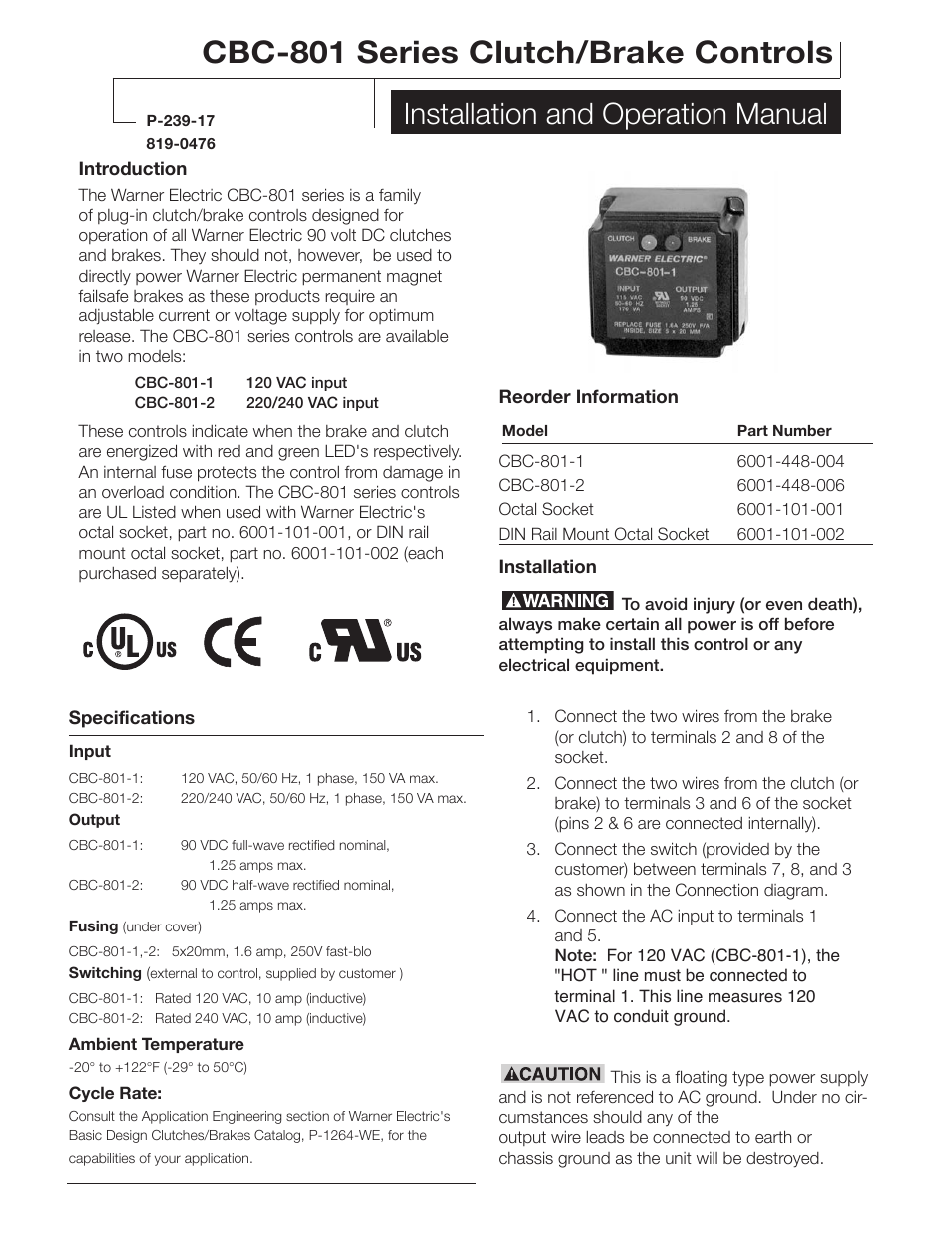

P 0239 21 we installation operation manual for cbc 150 series clutchbrake controls. Page 2 introduction the warner electric cbc 801 series is a family of plug in clutchbrake controls designed for operation of all warner electric 90 volt dc clutches and brakes.
Frontiers Quantitative Rna Seq Analysis Unveils Osmotic And
Cbc 801 1 wiring diagram. Connection diagrams cbc 100 1 2 cbc 150 1 2 dimensions all dimensions nominal unless otherwise specified. Radwell also repairs altra industrial motion cbc 801 1. Used 2 from 5749 2500 shipping. Customer between terminals 7 8 and 3 as shown in the connection diagram. The cbc 801 will operate two units separately or simultaneously. Warner electric cbc 801 1 power supply 6001 448 004.
This is a floating type power supply. Specifications cbc 801 1 cbc 801 2 part no. The wiring connections are made at the socket. Fuse switch black hot red cbc 100 1 120 vac cbc 100 2 220240. Models are available for either 120 vac or 220240 vac input. Mcs 103 1 power supply with single torque control.
Connect the ac input to terminals 1 and 5. As shown in the connection diagram. Connect the ac input to terminals 1. Buy new or surplus altra industrial motion cbc 801 1 clutchbrake power supply 8 pin 2 channel input. Octal socket is purchased separately. They should not however be used to directly power warner electric permanent.
6001 448 004 6001 448 006. Page 1 of 1 start over page 1 of 1. In order to navigate out of this carousel please use your heading shortcut key to navigate to the next or previous. This shopping feature will continue to load items when the enter key is pressed. P 0239 17 we 819 0476 service installation instructions. Cancer and reproductive harm.
Multi unit capacity the cbc 801 is a basic on off power supply that provides full voltage to a 90 volt clutch or brake and is activated by an external switch. For 115 vac cbc 801 1 the hot line must be con nected to terminal 1. This line measures 120 vac to conduit ground. Cbc 801 1 115 vac input cbc 801 2 220240 vac input these controls indicate when the brake and clutch. For 120 vac cbc 801 1 the hot line must be connected to terminal 1. 125 amp 90 vdc wleds parts.
Customers also shopped for. Cbc 801 series multi unit capacity the cbc 801 is a plug in power supply which is used with an octal socket. The cbc 100 and cbc 150 series are ul listed conduit box mounted controls for 90 volt clutches and brakes. P 0239 18 we 819 0478 installation and operation manual. Cbc 801 series clutchbrake controls. The cbc 801 is a plug in power supply which is used with an octal socket purchased separately.
Page 1 cbc 801 series clutchbrake controls service installation instructions p 239 17 we 819 0476 an altra industrial motion company. The cbc 801 will operate two units separatelyor simultaneously. 115 vac 5060 hz 170 va output.
