Installation instructions for part lc gmrc cl29. Factory chime retention with aftermarket radio.

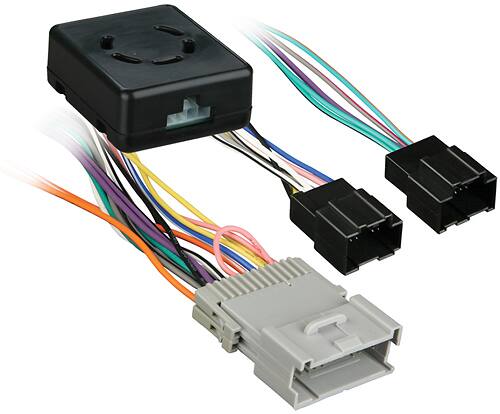

Axxess Lc Gmrc Cl29 Wiring Harness W Chime Retention By Metra
Lc gmrc cl29 wiring diagram. If the aftermarket radio has an illumination wire connect the orange. Connect the black wire to the ground wire. Cutting tool crimping metra wiring harness with chime retention lc gmrc cl29 wiring harness with chime retention for 2000 up gm vehicles chime retention with important warning. Connect the yellow wire to the battery wire. Each wiring harness we sell serves a purpose such as installing an aftermarket car stereo integrating an aftermarket amplifier with your factory car stereo connecting bluetooth to your factory car stereo and more. To initialize the interface turn the ignition on and wait for 30 seconds then turn the ignition back off and on again.
Connect the bluewhite wire to the power antenna wire. The various features that the wiring harness provides to your car stereo andor audio system. Lc gmrc cl29 installing the lc gmrc cl29 1. Lc gmrc cl29 5 installing the lc gmrc cl29 initializing the lc gmrc cl29 with the key in the off position. Metra lc gmrc 01 wiring interface connect a new car stereo and img source. Lc gmrc 01 3 connections to be made connections to be made from the lc gmrc 01 harness to the aftermarket radio.
Connect either the ld lcgmrc01rca or ld lclan 01rca harness into the interface and then to the vehicle. With all connections completed reconnect the negative battery terminal. Testing the lc gmrc cl29 1. Plug the lc gmrc cl29 into the vehicle and into the radio. If the interface loses power for any reason the following steps will need to be performed again. Connect the red wire to the accessory wire.
