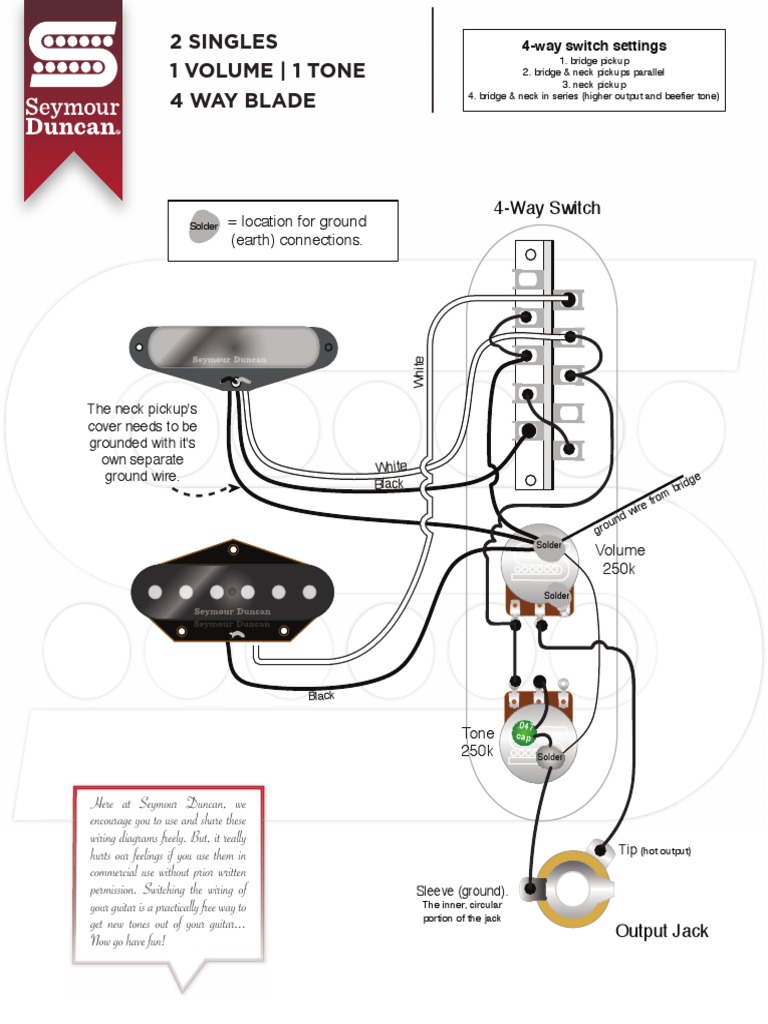

This diagram shows how to wire a telecaster style guitar with the fender 4 way mod switch to add the neckbridge in series option. Thanks tyler for your clear wiring diagrams for a 4 way.
Sv 8454 Way Switch Wiring Diagram With Dimmer 4way Switch
4 way tele wiring diagram. 1 in the world within telecaster 4 way switch wiring diagram image size 650 x 600 px and to view image details please click the image. Fender telecaster electric guitar central no. This popular telecaster setup uses a 4 way switch. Tele with 4 way switch. 3 it cuts out dead. If you do not find the list or diagram for your specific instrument on this page we may still be able to furnish you with a hard copy from our archive.
Ready to get started. In the series setting the output will be stronger and have more bass than the standard middle neckbridge in parallel switch position. The only special part you need is a 4 way switch. Most of our older guitar parts lists wiring diagrams and switching control function diagrams predate formatting which would allow us to make them available on this page as pdf files. We sell tapped tele pickups individually and as part of the custom shop 53 tapped tele model t guitar shop set which includes a 5 way switch. Typical standard fender telecaster guitar wiring.
4 way telecaster wiring diagram wiring diagram is a simplified gratifying pictorial representation of an electrical circuit. 4 to the series combo pos. Click diagram image to openview full size version. It shows the components of the circuit as simplified shapes and the capacity and signal associates amongst the devices. Here are two youtube videos which will also help. 4 way tele mod wiring diagram for the 4 way switch.
Solder this new ground wire to the back of the volume pot. Its the 3rd or 4th try with a peavey generation series 2 tele copy but i have a persistent problem. Treble bleed cap is optional. If you are not using a metal control plate you will need to run a small ground wire from the volume pot to the tone pot. This is another cool wiring scheme that gives you all the traditional sounds plus something extra. Tele style guitar wiring diagram with three single coils 5 way lever switch 1 volume 2 tones.
Tele wiring diagram with 2 single coils 1 volume 1 tone and the fender 4 way mod lever switch. Wiring diagram for the 4 way telecaster setup which allows all three classic telecaster switch positions plus an extra position which puts the neck and bridge pickups in series giving a fuller fatter tone. Wire connecting this tab to the black wire and grounding the cover. Everything works except this. Telecaster 4 way wiring diagrams this wiring diagram assumes you are using a metal control plate. Here is a picture gallery about telecaster 4 way switch wiring diagram complete with the description of the image please find the image you need.
No matter how i wire going from neck pos. You will need to break this connection. Dont forget the supplieswire solder shielding amp. To re ground the pickup cover solder a 10 12 length of wire to the tab.
