They are remotely controlled. Its opto isolated inputs provide 3000 vdc of isolation between the analog input and the module protecting the module and peripherals from damage due to high input line voltages.

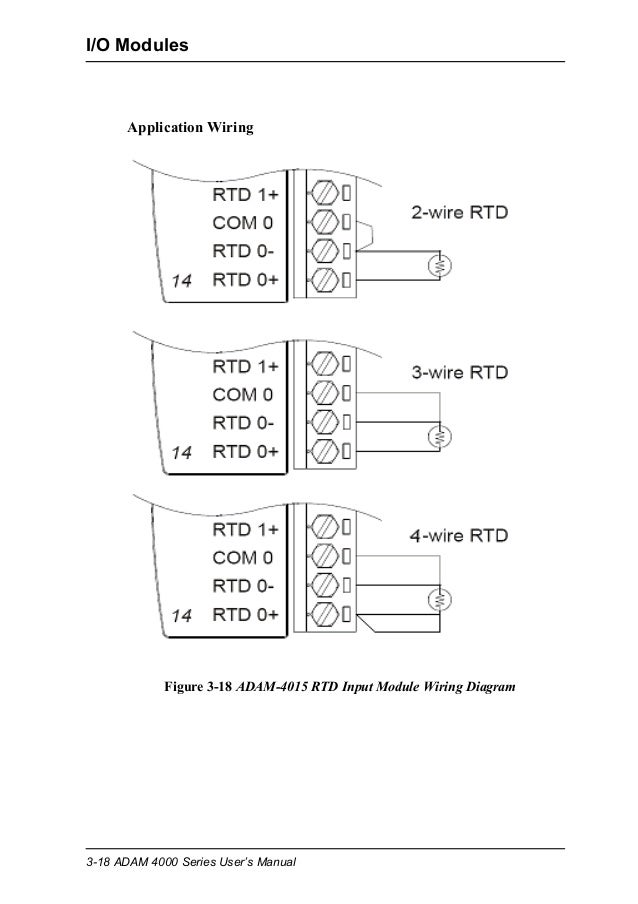

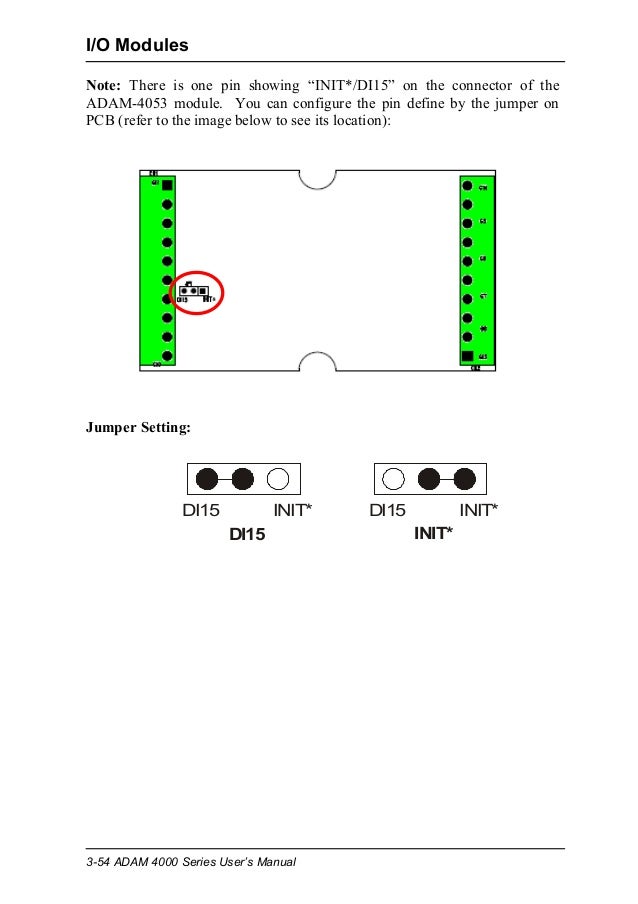

Adam 4000 Manual V20

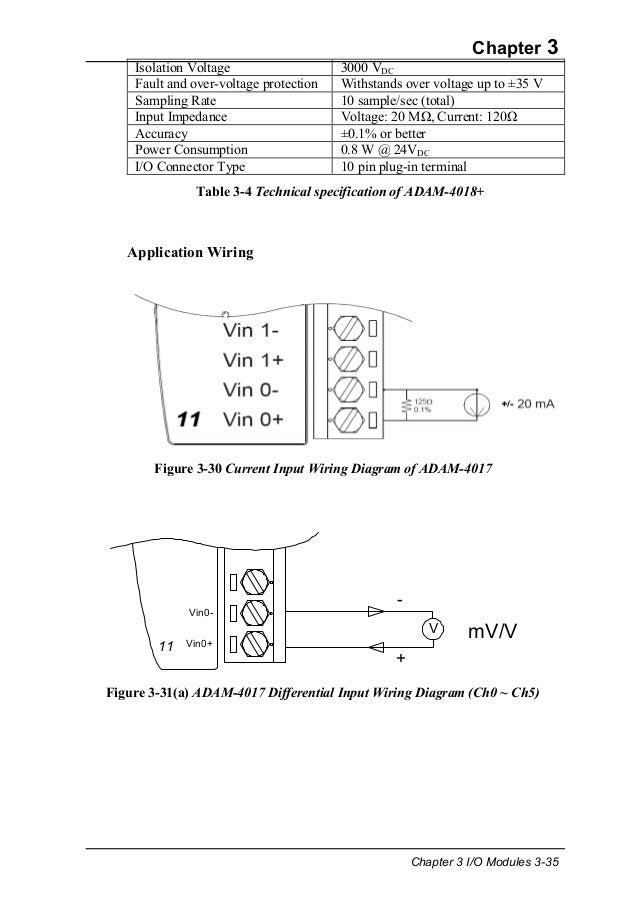

Adam 4017 wiring diagram. Advantech adam 4017 pdf user manuals. Visit the european website. Each analog channel is allowed to configure an individual range for variety of applications. To get information relevant for your region we recommend visiting our european website instead. Figure 332 adam 4017 single ended input wiring diagram ch6 and ch7 figure 333 adam 4017 voltage and current input wiring diagram adam 4000 series user manual. This module is an extremely cost effective solution for industrial measurement and monitoring applications.

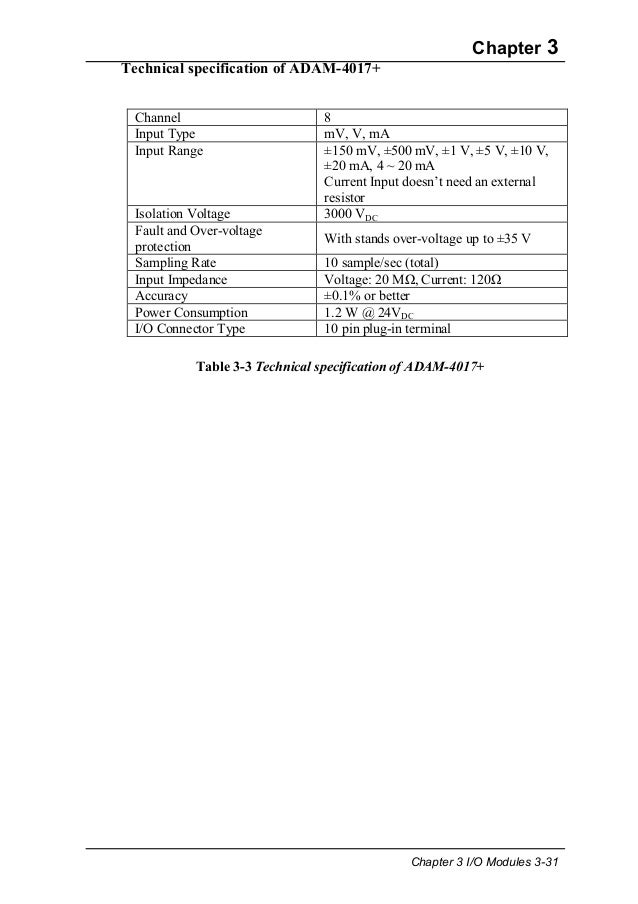

These modules are an extremely cost effective solution for industrial measurement and monitoring. 1 2 adam 4000 series users manual introduction 11 overview the adam series is a set of intelligent sensor to computer interface modules containing built in microprocessor. Page 63 io modules mvv figure 3 31b adam 4017 single ended input wiring diagram ch6 and ch7 vin 1 vin 1 vin 0 vin 0 vin 1 vin 1 vin 0 vin 0 figure 3 32 adam 4017 voltage and current input wiring diagram 3 36 adam 4000 series users manual built in 125 ohm resister vin5 vin5. I linked a wiring diagram for you that shows the various inputoutput connections including the wire colors for each speaker. Figure 36 adam 40114011d digital output wiring diagram used with ssr hi lo alarm 28 figure 37 adam 40114011d digital input wiring diagram used with ttl28 figure 38 adam 40114011d digital input wiring diagram used. Yes the irv wall mounted multimedia receiver irv34 will have similar connections to your jensen stereo and will make a good replacement.
The adam 4018 is a 16 bit 8 channel analog input module that provides programmable input ranges on all channels. The adam 6017 is designed with 8 analog inputs and 2 digital outputs to satisfy all plant needs. These modules are an extremely cost effective solution for industrial measurement and monitoring applications. Adam 4019 8 channel universal analog input module. 3000 vdc optical isolation between the analog input and the modules protects the modules and peripherals from damages caused by high input voltages. View online or download advantech adam 4017 user manual.
The adam 4017 is a 16 bit 8 channel analog input module that provides programmable input ranges on all channels. The adam 4017 is a 16 bit 8 channel analog input module that provides programmable input ranges on all channels. Datasheet pdf documents downloads 3d model online view buy online configure system. Wiring burned out detection function.
