Replaced an inoperative america king ak 350 with the trans cal ssd 120 30n. Avoid turning the hex fitting on the encoder.

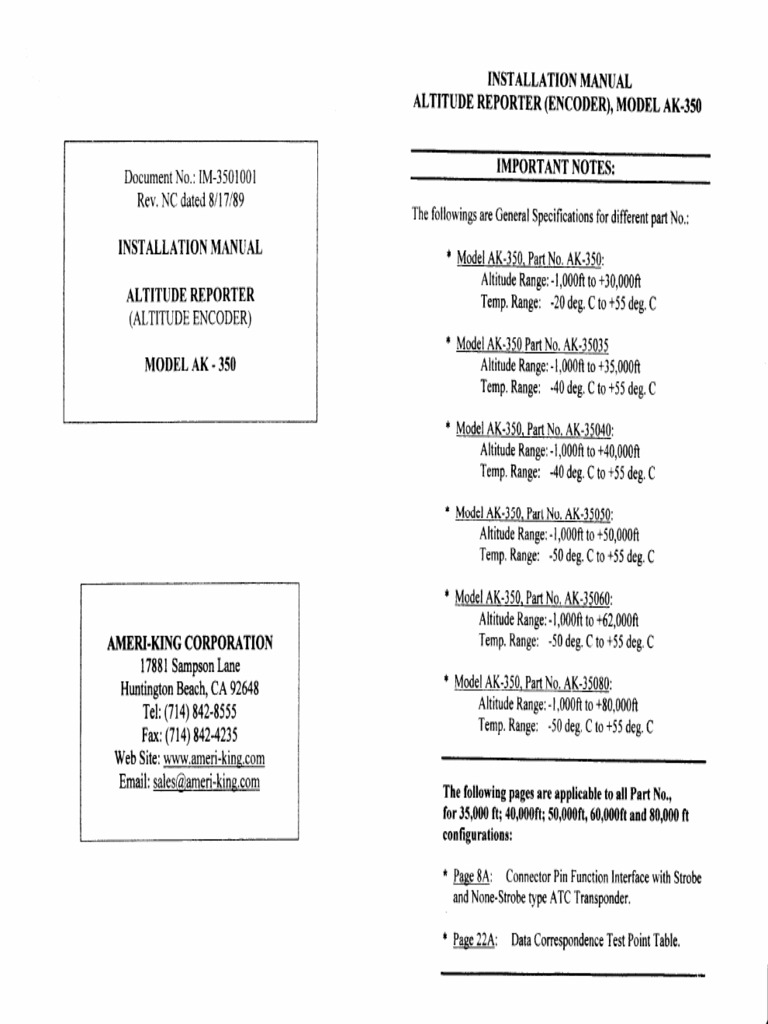

01 Ak 350 Installation Manual Blind Encoder Zs Oeb
Ak 350 encoder wiring diagram. Ack a 305 altitude encoder add mode c capability to y our aircraft the most cost effective way. Before doing an installation please refer to the technical documentation below. Use a suitable thread sealant to prevent leaks. I dont have the skill to change your drawing but i believe the correct matches are as follows. If you have any questions. The encoder accepts a 18 npt fitting at the static pressure inlet.
Ameri king altitude encoder model. It was a perfect fit with the addition of the optional adapter plate. Ak 35060 ak 350bo onl eneral note. Perfect for pressurized or non pressurized installations and uses 14v or 28v power. After study of both manuals i question three of your connections. 3350 scott blvd bldg 1502 santa clara ca 95054 phone.
Perfect for pressurized or non pressurized installations and uses 14v or 28v power. Ote 1 no connection leava pin o en for pn ak 350. Use a t fitting and ¼ id. Trans cal altitude encoder model ssd120 30n faa tso the worlds smallest and lightest altitude encoder. This connection is re uired for pn ak 35035 ak 35040i ak 35050. A 30 encoder technical data.
Ak 350 is the most advanced blind altitude reporter on the market extremely accurate and reliable it compatible with all transponder is tso c88 approved and reports altitude to 30000 ft. It is im ortant that refer to egpwsftaws manufacturer installation manual for actual installation. The 15 pin. Hose to supply static pressure to the encoder. Neither the ameri king nor garmin interconnect diagrams specifically mention each other however there appears to be some common terminology for the pin labels. Only 35x 2x 475 and weighs 04 lbs.
Below is a list of our technical data for our a 30 encoder models. The ameri king ak 350 is the most advanced blind altitude reporter on the market extremely accurate and reliable the ak 350 is compatible with all transponders is tso c88 approved and reports altitude to 30000 ft. Click here to search. A direct wiring replacement from the old ameri king ak 350. The ack encoder is the smallest lightest highest quality encoder available today and features the latest solid state electronics for high rel. Use the 15 pin socket provided with the unit to make a wiring harness.
Looking for a part for your aircraft. Altitude encoder interconnect schematic diagram with non strobe eopwrraws.
