Discussion starter 1 jul 19. Ive been researching adding an auxiliary input to the blaupunkt cd30 manufacturers part number 453116246 in my 06 vauxhall corsa.
Corsa D Double Screen Gid Amp Mp3 Aux Install Youtube

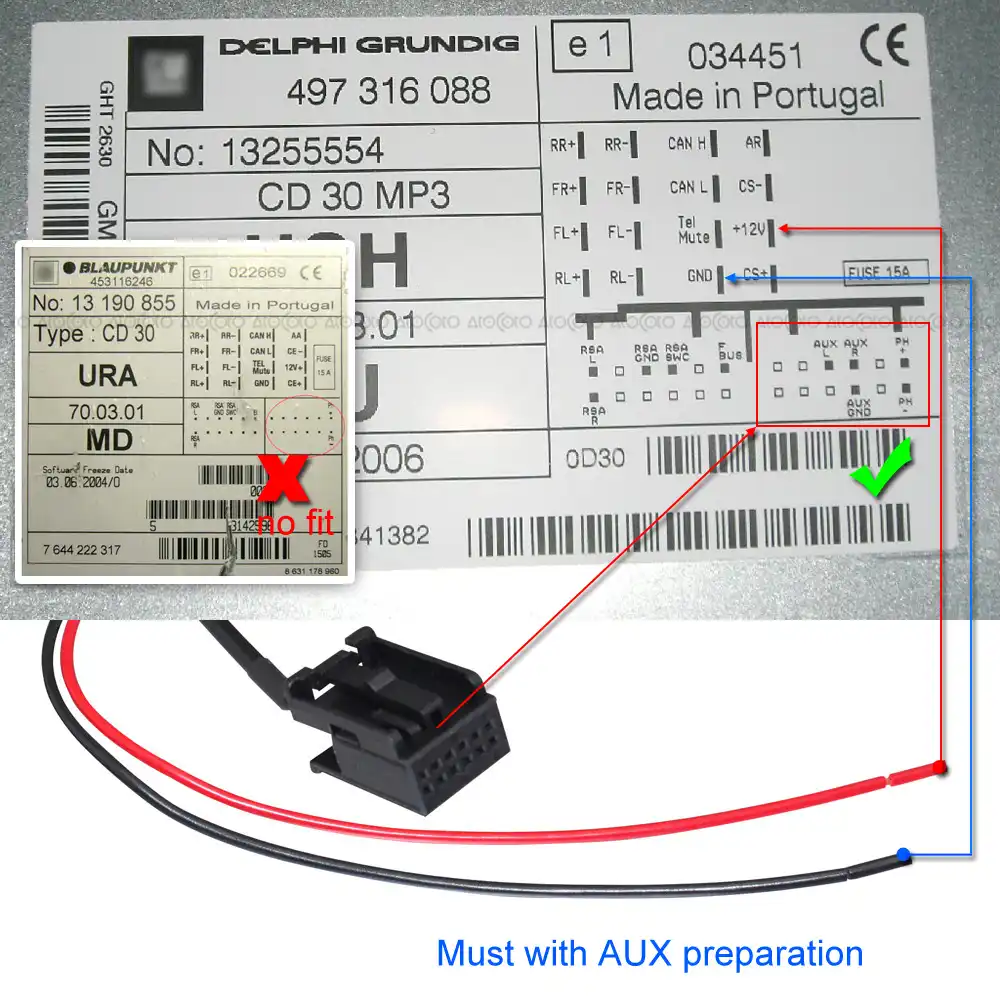

Cd30 mp3 aux wiring diagram. New cd30 mp3 wiring. On the plug in there is something using the aux in. Anybody have access to vauxhall parts catalogue. Pdf size 30 mb. I think i may have found some info and pics of my girlfiends corsa. A handful of people have mentioned the possibility of connecting wires directly to the audio output from the cd drive inside the unit.
I am assuming this is the onstar. Blaupunkt cd30 mp3 opel. Joined may 17 2008 77 posts. Below that in the aux gnd i have a black wire. Ive been doing a bit of reading up on wiring up the cd30 aux in and it looks like a bit of a sore subject at the mo. Im trying to get aux wired up for my niece in her wee corsagot a replacement cd30 headunitmfd with corresponding aux input on the rear but i cannot find the cable circled anywhere so im wondering is it part of the main loom or wha.
Download blaupunkt cd30 mp3 opel service manual repair info for electronics experts. The pin below that is empty as is on your wiring diagram. For astra astra belmont astra estate astra h astra h caravan astra h gtc astra h sport hatch astra h stufenheck astra h twintop astra h van corsa corsa c vectra vectra c. In your aux r i have a purple wire with red stripe. Pinout of opel cd30 mp3 head unitpn 13190855 delphi grundig gm part 334 183 129. This site helps you to save the earth from electronic waste.
Jump to latest follow 1 9 of 9 posts. Service manuals schematics eproms for electrical technicians. Then next to that to the left where you aux l is on the top i have a purple wire with white stripe.
