Dei 530t wiring diagram. I have a dei 530t window module to install with my 790vx that i have a question abouti was told by a good friend who does installs that there is a way to wire the module so that it can control all 4 windows and not just two. When wiring the 530t in a vehicle with a type b system it is necessary to run the wires into each door to be controlled by the 530t. 28052019 28052019 2 comments on 530t wiring diagram image on each page. He is on vacation now and i c. Browse or search for files. Im trying to install a dei 530t window automation module in order to get one touch up and down functionality on my ac tundra and am fairly ignorant when it comes to electricalwiring work.

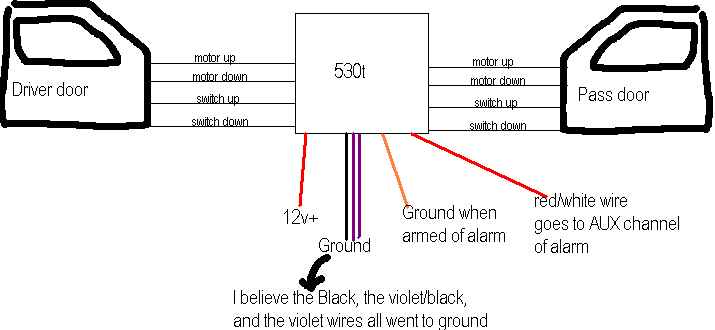

Dei 530t window module wiring hi everyone. Ive identified the various wires i need to connectsplice with the wiring diagrams but im wondering. They trigger the 530t to move the power windows one direction or the other. All ground wires h32 whiteblack h31 white h16 violetblack h15 black and h11 violet must be connected for the system to function correctly. 2 windowwiring diagram h2 h3 h1 note. Just remember with the 530t installed the switches are no longer connected to the motors.
Verify that all windows work correctly with their respective switches. When wiring the 530t in a vehicle with a type b system it is necessary to run the wires into each door to be controlled by the 530t. Remember with the 530t installed the switches are no longer connected to the motors.
