Refer to 8 channel analog station wiring diagram and colortran production drawings for connection 013 rmb81 028 details of this preset. The daisy chain is a simple wiring method where you wire each fixture looping out of the previous fixture to create a line of fixtures connected back to the console.

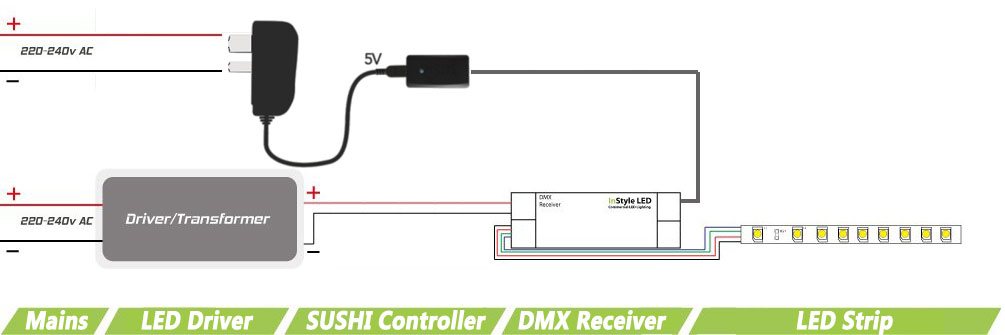

Sushi Stick Programmable Dmx Controller Instyle Led

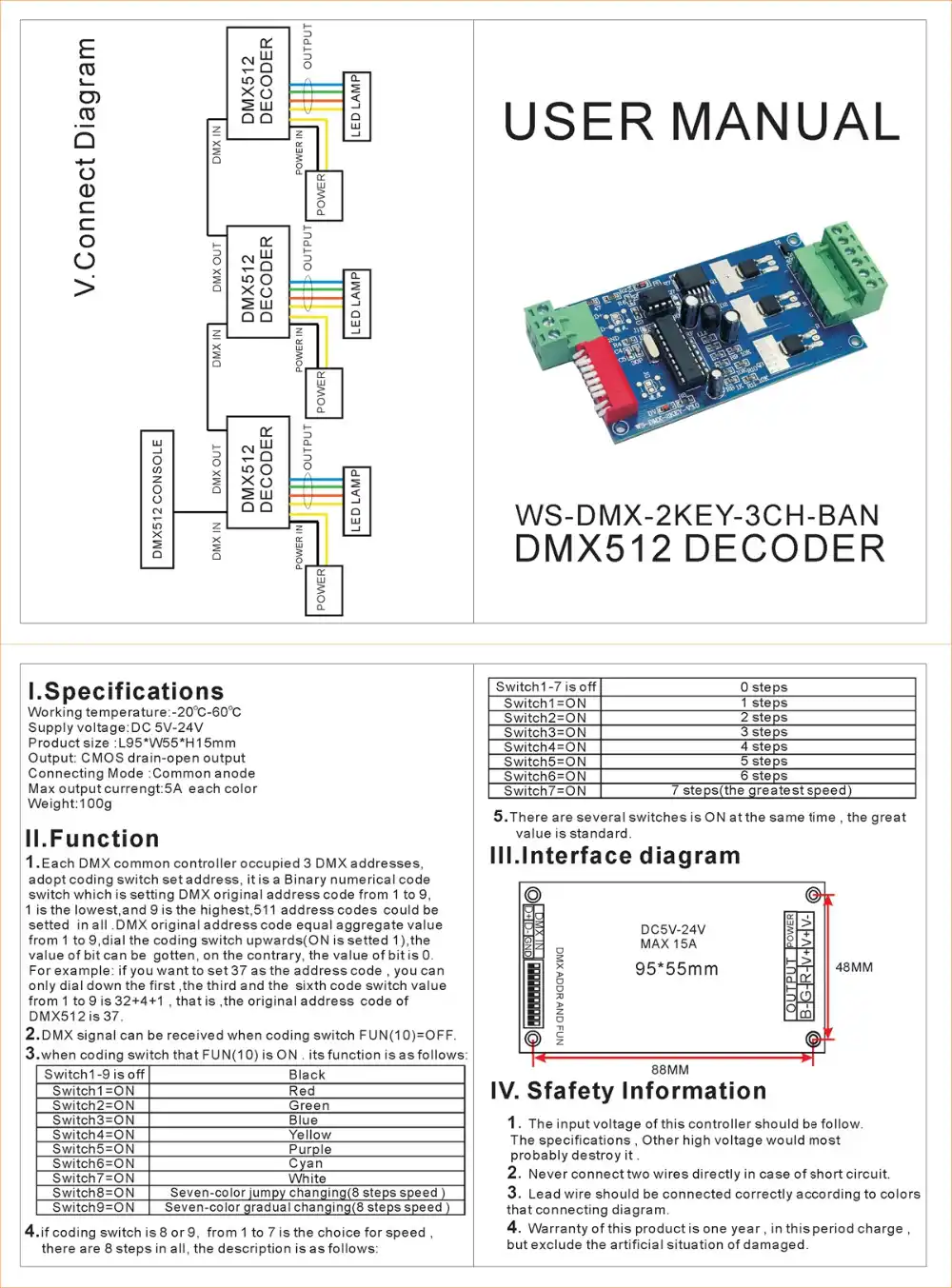

Dmx controller wiring diagram. All wiring must be in a continuous run and daisy chained. It is recommended to use a dmx controller. Using a razor blade start by splitting the cable about 05 1 long both ends. 34dmx5m led strip wiring diagram 34 ledm 170 led per 5m reel. However if not implemented correctly problems can arise such as random flashing of lights erratic operation and delays in responding to commands. Must use electronic transformer tra e 8.
With dmx controller diagram 1 diagram 2 dmx system with dmx controller and power supply ul listed enclosure by others. No tees are permitted. Pdf file below a typical dmx universe is shown. Dmx sstem installation guide wiring installation 3. Dmxrdm is a robust and reliable system for lighting control. Maximum dmx cable length is 300m in total.
A dmx 512 control console for developing scenes dmx stations only. If applicable connect dmx rgbx to. This document explains the best practices in dmx wiring. Use a j box to make wiring connections. Maximum cable length is 1800 ft when used for dmx only. The led display and buttons are wired to the main controller pcb by some ribbon cable.
Cable shield may be grounded at one end only preferably at the control console. Connect dmx rgbx to 24v dc power source. Strip all 18 of insulation of each wire both ends. Dmx controller can serve 30off lin100a1 drivers. This enables the display and buttons to be mounted away from the main controller. Dmx software controller.
Led led led led led r r c g g w. Multiple decoders can be wired to a single power source given the load of the decoders does not exceed the load of the transformer. If you require more than 30 drivers a splitter is required for additional 30 drivers. When working with a lighting console whether its a pc based or hardware the console will come with a dmx outputa dmx output sends out a signal to communicate with lighting fixtures. 24dmx5m led strip wiring diagram 24 ledm 120 led per 5m reel. Star wiring is only allowed in conjunction with an opto splitter.
Scroll down to download. 31 connect lead wires from light fixture or tape as applicable to the product being installed. Below are a few examples of dmx led strip wiring. A 12to 16 vdc power supply or analog stations this power supply is not required when used in conjunction with a dmx station.
