The permanent generator can be started and load bank testing can be done. Built to the current nec and ul standards and with the installing electrical contractor in mind we manufacture a full line of products to safely connect a portable generator andor load bank that help protect you your business and your customers from.
Electromagnetic Induction
Generator docking station wiring diagram. Docking stations 100a 5000a key features. Standard docking station used to safely integrate a portable generator or load bank into an existing electrical system that already has the necessary switching means available. Collection of onan generator wiring diagram. Skip to primary navigation. Easily connect a portable energy source to any building hospital pump station or concert hall using our line of generator docking stations. Steel enclosure with gray powdercoat ral 7038 stainless steel and additional colors optional.

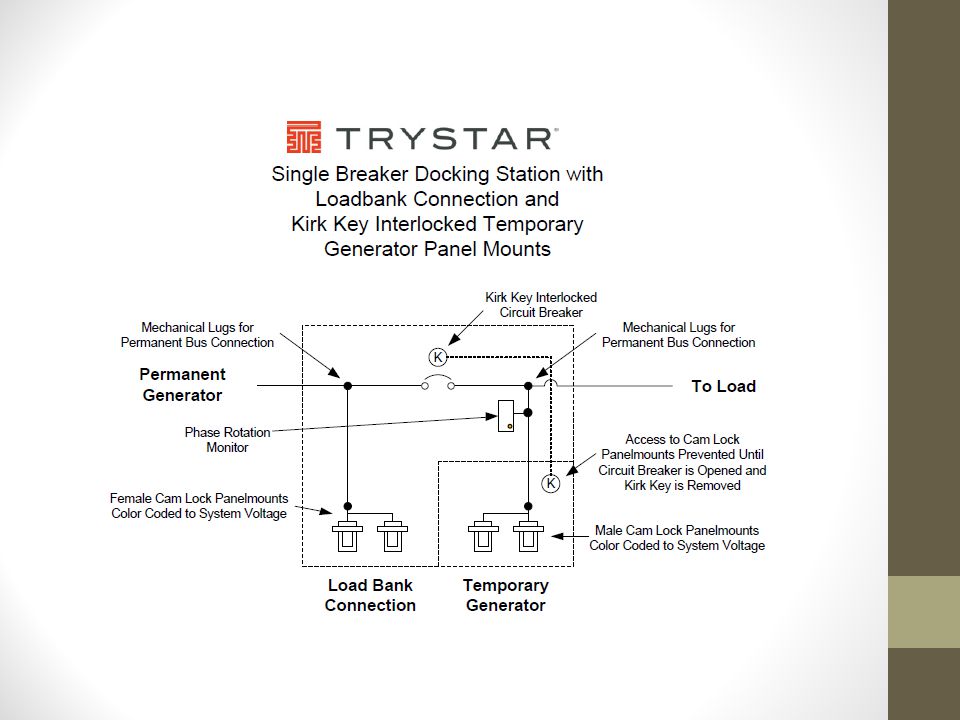

This connects the permanent generator to the load bank connection. Pad mount with cam lok and hard wire or extra buss for feed thru applications. Rotary generator docking station a rotary docking station is a manual transfer switch with the camlok connection built into the same enclosure. Generator load bank connection temporary generator load bank connection permanent generator permanent generator. These diagrams show five examples of common connection configurations for berthold electric companys generator connection cabinets. A wiring diagram is a simplified traditional pictorial depiction of an electric circuit.
It reveals the components of the circuit as streamlined forms and the power and signal links in between the tools. Esls ulcul 1008 listed temptap generator docking stations are designed to provide end users with a safe and simple solution to connect a portable generator to a grid tied facility. Temptap is a pass through junction box that can be mounted to a building and is typically hard wired to an upstream circuit breaker enclosure or system such as a transfer switch or utility disconnect. Nema 3r or 4x powder coated aluminum. In the event of a utility power loss to the facility the ats is prewired to a shunt trip in the left hand breaker tripping the breaker and allowing the permanent generator power to feed the facility. Weve been building custom generator docking stations for decades400 to 4000 amps.
Our products up to 3400 amps are all ul listed and built to your specs. Typically in lower amperage situations this product is taking the place of a double throw transfer switch and a secondary camlok connection cabinet mounted adjacent to this switch. Type 3r heavy gauge galv. Example one line diagrams example part numbers based on 400a 277480v wall mount applications. Color coded cam style connectors for easy portable generator connection. Generator docking station wiring diagram wiring diagram is a simplified gratifying pictorial representation of an electrical circuitit shows the components of the circuit as simplified shapes and the skill and signal links amid the devices.
Direct wire connection available for indoor installations temptap generator docking station required handle cover provides security from unauthorized use.
