Isolated ground receptacle wiring diagram. Please right click on the image and save the photograph. This is the isolated ground receptacle wiring diagram gooddy of a image i get off the outlet to wiring diagram collection. Gnd ground equipment enclosure ig receptacle if used main breaker receptacle panel no scale receptacle wiring diagram isolated ground 26052602dgn. This receptacle differs in construction from its self grounding counterpart. An isolated ground receptacle uses a higher level of protection for the cabling and connects to the ground bus on a panel or other insulated grounding conductor. The black hot wire connects to the brass colored terminal on the receptacle.
It shows the components of the circuit as simplified shapes and the power and signal connections amid the devices. The white neutral wire connects to the silver colored terminal and the bare ground wire connects to the ground screw on the metal electrical box. You might think about using an isolated ground receptacle as part of your network wiring. The grounding terminal for an igr is insulated from its metal mounting yoke. In 1984 responding to this and other incidents the authors of the national electrical code provided installation requirements for an isolated equipment grounding. Our people also have some more graphics associated to outlet to wiring diagram please see the image gallery below click one of the graphics then the.
A basic wiring configuration for an ig receptacle starts with a 3 wire cable with a ground wire. Isolated gnd bus equipment gnd bus ground bus neutral bus 208120v bus neutral l n iso. Isolated ground receptacle wiring diagram wiring diagram is a simplified gratifying pictorial representation of an electrical circuit. A basic diagram of this type of improper wiring can be seen below where a separately driven ground rod is used to reference the insulated equipment grounding bus in a sub panel. Alternatives to isolated ground receptacles. 26052602 isolated ground receptacle wiring diagram alt default.

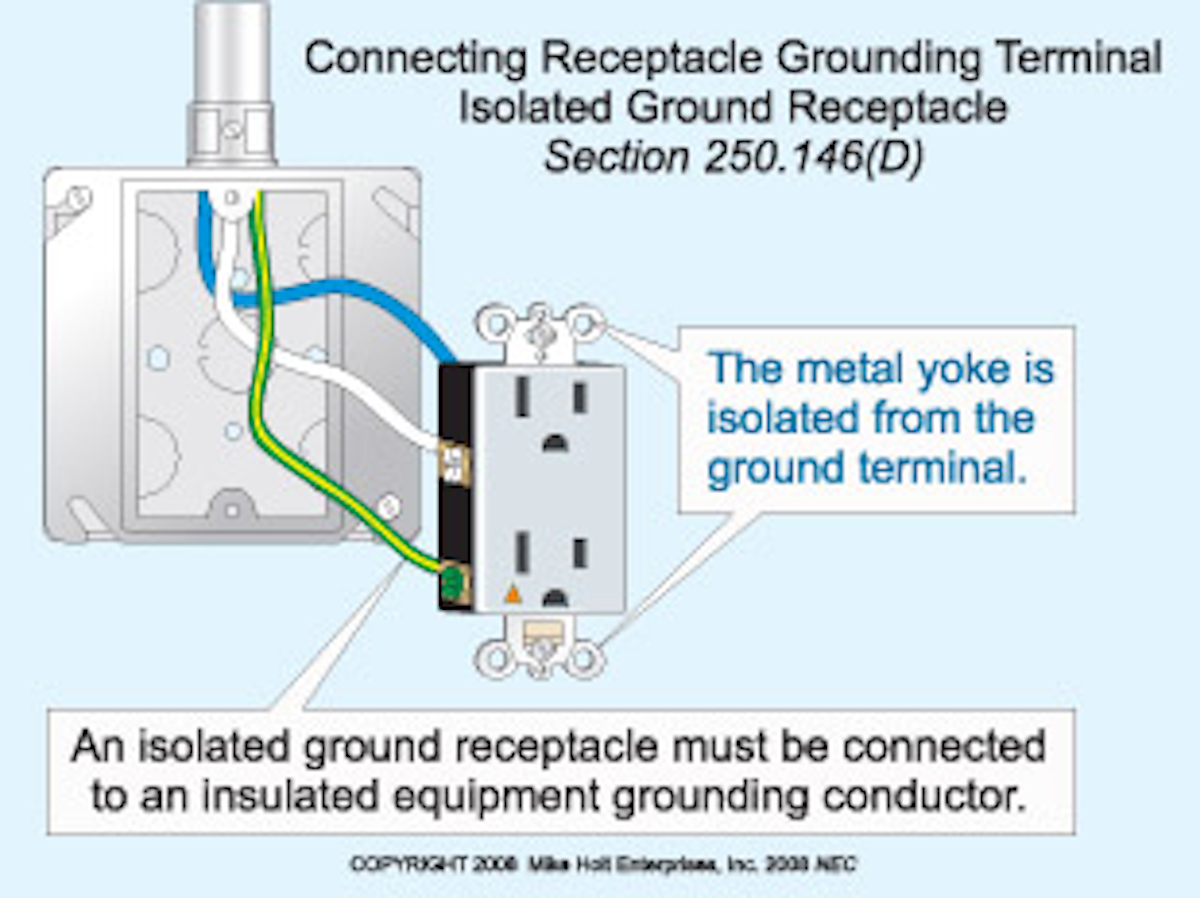

Use of an isolated equipment grounding conductor does not relieve the requirement for grounding the raceway system and outlet box ig wiring on direct connected circuits as per 25096b isolated grounding circuits where required for the reduction of electrical noise electromagnetic interference on the grounding circuit. 2014 nec section 250146 connecting receptacle grounding terminal to box d isolated ground receptacles where installed for the reduction of electrical noise electromagnetic interference on the grounding circuit a receptacle in which the grounding terminal is purposely insulated from the receptacle mounting means may be permitted. Section 250118 provides a list of wiring methods that qualify as equipment grounding conductors. An isolated ground receptacle igr can reduce electrical noise but if installed incorrectly it can create a dangerous installation. The other will be the additional isolated insulated equipment grounding conductor which will terminate directly on the isolated grounding receptacle figure 3.
