Thus the loop diagram is the most detailed form of diagram for a control system as a whole and as such it must contain all. A loop diagram will.
Chapter7 Control Loop

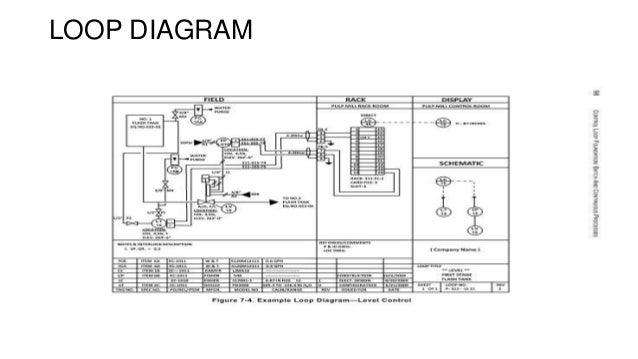

Loop wiring diagram instrumentation pdf. Pids and loop diagrams pids and loop diagrams are construction and documentation drawings that depict the flow of the process and illustrate the instrumentation control and measurement interactions wiring and connections to the process. The only type of diagram for this system more detailed than a loop diagram would be an electronic schematic diagram for an individual instrument which of course would only show details pertaining to that one instrument. 1 identification of the loop and loop components shown on the pids. Loop wiring diagram instrumentation pdf wiring diagram is a simplified tolerable pictorial representation of an electrical circuit. The process is illustrated in sections or subsystems of the process called loops. 2 word description of loop functions within the title.
As a minimum an instrument loop diagram shall contain the information covered below. 1 identification of the loop and loop components shown on the pids. As a minimum an instrument loop diagram shall contain the information covered below. Loop diagrams are the most detailed form of diagrams for a control system and thus it must contain all details omitted by pfds and pids alike. 2 word description of loop functions within the title. Other principal components of the loop to be shown and identified under isa s51 instrumentation symbols and identification.
It shows the components of the circuit as simplified shapes and the facility and signal links amongst the devices. These set of drawings are more detailed than process and instrument diagrams pids. Instrument loop diagrams are also called instrument loop drawings or loop sheets. Wiring diagrams of plc and dcs systems di do ai ao x liquid level control using flow loop control systems since liquid level can only change in a vessel if there is an imbalance of inlet and outlet flow rates would this system be practical to achieve stea. Other principal components of the loop to be shown and identified under isa 51 instrumentation symbols and identification.
