Label cables at the end in the central location as you need to know what room and socket they connect to. Pin 2 green transmit wire.
Cable Harness Electrical Connector Electrical Wires Amp Cable
Network cable wiring diagram. When wiring a jack or an rj 45 plug remember to keep the twist as close as possible to the jack or plug receptacle. Pin 8 brown wire. The two wiring standards t568a and t568b vary only in the arrangement of the colored pairs. This will insure compliance with ethernet wiring standards. Making ethernet cables is easy with a box of bulk category 5e ethernet cable and rj 45 connectors that are attached to the cut ends of your preferred cable length. Click to check the right one for you or print as reference.

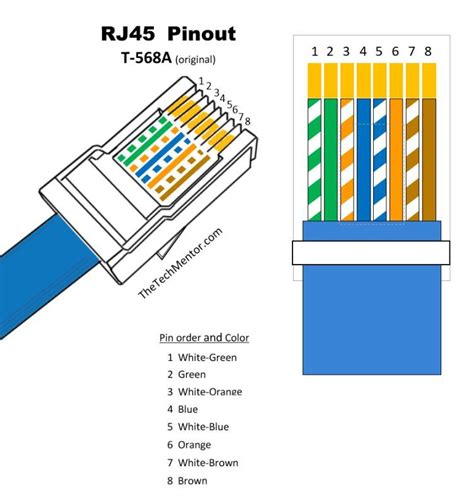

Pin 3 white and orange receive wire. Pin 5 white and blue wire. Pin 1 white and green transmit wire. Rj45 pinout diagram shows wiring for standard t568b t568a and crossover cable. Most patch panels and jacks have diagrams with wire color diagrams for the common t568a and t568b wiring standards. It was introduced commercially in 1989 and became ieee standard 8023 in 1983.
The cable and new ethernet cables come down the wall in the same space. It is important to wire according to a standard to get proper performance from the ethernet cable. The complete ethernet pinout cable wiring reference with wiring step by step guide. Rj45 pinout for a lan cable. The tiaeia 568 a specifies two wiring standards for an 8 position modular connector such as rj45. You should choose one and use it consistently everywhere.
This article shows how to wire an ethernet jack rj45 wiring diagram for a home network with color code cable instructions and photosand the difference between each type of cabling crossover straight through ethernet is a computer network technology standard for lan local area network. Click to find view print and more. Each network diagram includes a description of the pros and cons of that particular layout as well as tips for building it. Ethernet cable color coding diagram for. Pin 6 orange receive wire. Many home network layouts work fine but most are variations on a basic set of common designs.
This is what cable colour is wired to what pin on the connectors. This gallery contains network diagrams for wireless wired and hybrid home networks. Remember the rj45 wiring order. How to make an ethernet cable purchasing ethernet cables can be quite expensive and pre made lengths are not always the length you need. Pin 7 white and brown wire. There are two wiring standards in use 568a or 568b wiki.
Pin 4 blue wire. Youll love our internet and hosting services. The jack should have a wiring diagram or designated pin numberscolors to match up to the color code below. If you are an existing customer and have questions about your wiring or connection please call 780 450 6787 email.
