Many consumer dect cordless phones use a 25mm 3 conductor connector for a wired headset. Two different forms are frequently found both of which place left audio on the tip and right audio on the first ring mirroring the configuration found.
Headphone Adapters For Using Your Nokia Phone As An Mp3 Player
Nokia headset wiring diagram. Even the gold wire that wraps the white one. Green is for left audio. The button may be used to answer an incoming call and to end a call. By nokia since 2006. Use a multimeter to find witch cable to which pin is connected. White is for microphone.
Use а multimeter on circuit mode or resistance attach first probe to jack recommended is to use a crocodile and with the second touch the cables soldering point on the board one. To be more specific about wiring. So goldblueredblue is gnd and goes to pin 4. They are often compatible with standard 35 mm stereo headphones. Use wired headphones with soundbar. Direct short is the playpausetake call buttonshort with a 600ohm resistor and it is the play next function short.
Red is for right audio. While many business class telephones us an rj 9 type connector for a headset some manufacturers do use 25mm or 35mm 3 conductor connectorslooking around my bench i can find a couple of examples. Did this wiring and works on n8. Wiring diagram for beats studio headphones. Welcome to the official nokia phones website. 755p and centro headset handsfree diagram 4 conductor diagram.
Wiring diagram for beats studio 2 headphones. The cisco spa 508g sip desk phone has a 25mm 3 conductor headset jack and the grandstream gxv 3275 has 3. Headset button wiring button is activated by shorting the mic input pin3 to ground4 the function depends on the resistance between this short and varied over phone brandmodel. Adding an answerend call button to a headset the original nokia headset for the 51006100 series is equipped with a button on the microphone. Unfortunately all headsets do not have such button. Whether youre looking for an award winning android smartphone a retro favourite or your next accessory youll find it here at nokia phones.
I wana know that why there are separate wires for sound and mic so if i will use the cable of headphones will mic wontt work. 35 mm trrs stereo plus mic sockets became particularly common on smartphones and have been used eg. I think there is no difference between all nokia headsets but this step is to verify the wiring. Wiring for the nokia 25mm 4 pole headset socket of nokia 1100 1101 1110 1600 2100 2300 2500 2650 2652 3120c 3210 3310 3330 3410 3510 3510i 3650 3660. Which is the least important wire in headphones. Palmone treo headset schematic for palmone treo 650 treo 700w 750v tungsten.

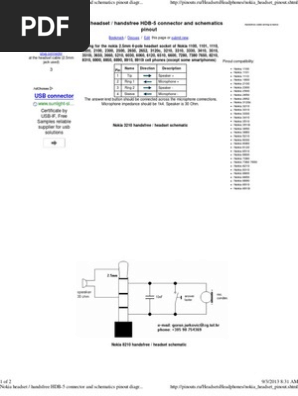

Nokia headset handsfree hdb 5 connector and schematics wiring for the nokia 25mm 4 pole headset socket of nokia 1100 1101 1110 1600 2100 2300 2500 2650 2652 3120c 3210 3310 3330 3410. And the rest put them all together and they are the gnd. One of the possible combination is folllowing. Tv to wired headphones. The target in this project is to install the button to a headset.
