Wiring requirements because of the power required to heat the cathodes ballasts used in rapid start operations have four connections with each lamp although two lamp ballasts often share the return. By using this regulator ballast the change in line voltage is 13 and about 3 is the lamp wattage change.
How To How To Replace 4 Lamp Two Series Ballasts With
Rapid start ballast wiring diagram. They are also one of the charter products of the nema premium ballast program. Higher current crest factor is only its disadvantage as this crest factor lies between 165 to 20. Series vs parallel ballasts and wiring. Pay close attention to the wiring diagram on the ballast as the new electronic t8 ballast are wired quite differently from the old magnetic t retrofit wiring diagrams. It minimizes the grounding and fusing problems. Optanium high efficiency instant start electronic fluorescent ballasts for t8 lamps engineered to optimize lighting performance and maximize energy savings optanium ballasts fully support the wide variety of t8 fluorescent lamps on the market.
Newer electronic ballasts are usually wired in parallel except for rapid start programmed start and dimmable ballasts. Ballast 3 lamp electronic instant start ballast universal lighting technologies is a subsidiary of panasonic lighting americas a member of the panasonic corporation eco solutions company 3 lamp rapid start to 3 lamp electronic instant start retrofit wiring diagrams notes. A circuit diagram of a regulator ballast is shown. This is applicable for 2 lamp t12 rapid start to a 2 lamp electronic t8 system. Ballast magnetic ballast universal lighting technologies is a subsidiary of panasonic lighting americas a member of the panasonic corporation eco solutions company 2 lamp rapid start to 2 lamp electronic instant start retrofit wiring diagrams notes. 2 lamp rapid start to.

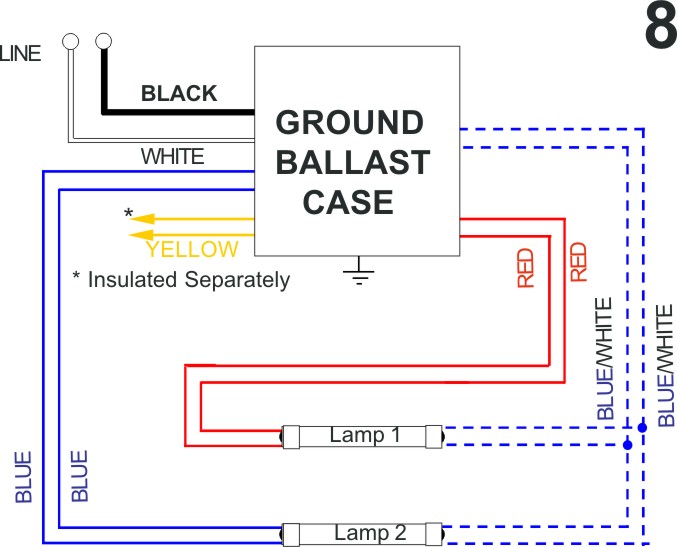

When a series ballast rapid start operates multiple lamps and one lamp fails the circuit is opened and the other lamps will not light. It reveals the components of the circuit as streamlined forms and the power and also signal links in between the gadgets. A typical two lamp rapid start configuration has two red wires going to lamp one two blue wires going to lamp two and a pair of yellow. Ballasts have a wiring diagram to show how they connect to the lampholders. This is applicable for 4 lamp t12 rapid start fixture with two 2 lamp ballasts to retrofit to one 4 lamp electronic t8 instant start. Instant start electronic ballasts use a high starting voltage about 600 volts to start very quickly less than 01 seconds.
Assortment of fluorescent ballast wiring diagram. There are four basic types of fluorescent ballasts. This is applicable for 3 lamp t12 rapid start fixture with a 2 lamp and a. Its power factor is about 095. A wiring diagram is a streamlined standard pictorial representation of an electric circuit.
