Modern ethernet cables feature a small plastic plug on each end of the cable. For optimal performance a single cable has to be used for pins 1 and 2 pins 3 and 6 pins 4 and 5 and pins 7 and 8.
Rj45 Wiring Diagram Crossover Generatorisasi 2006 Rmnddesign Nl
Rj45 wiring diagram. But the position of the different colored wires varies for both. Figure 2 is the wiring scheme for the plug side of an rj 45 connector in accordance with t 568b standards. That plug is inserted into rj45 jacks of ethernet devices. The jack should have a wiring diagram or designated pin numberscolors to match up to the color code below. Rj45 colors wiring guide diagram tiaeia 568 ab. It reveals the components of the circuit as simplified shapes and the power as well as signal connections in between the devices.

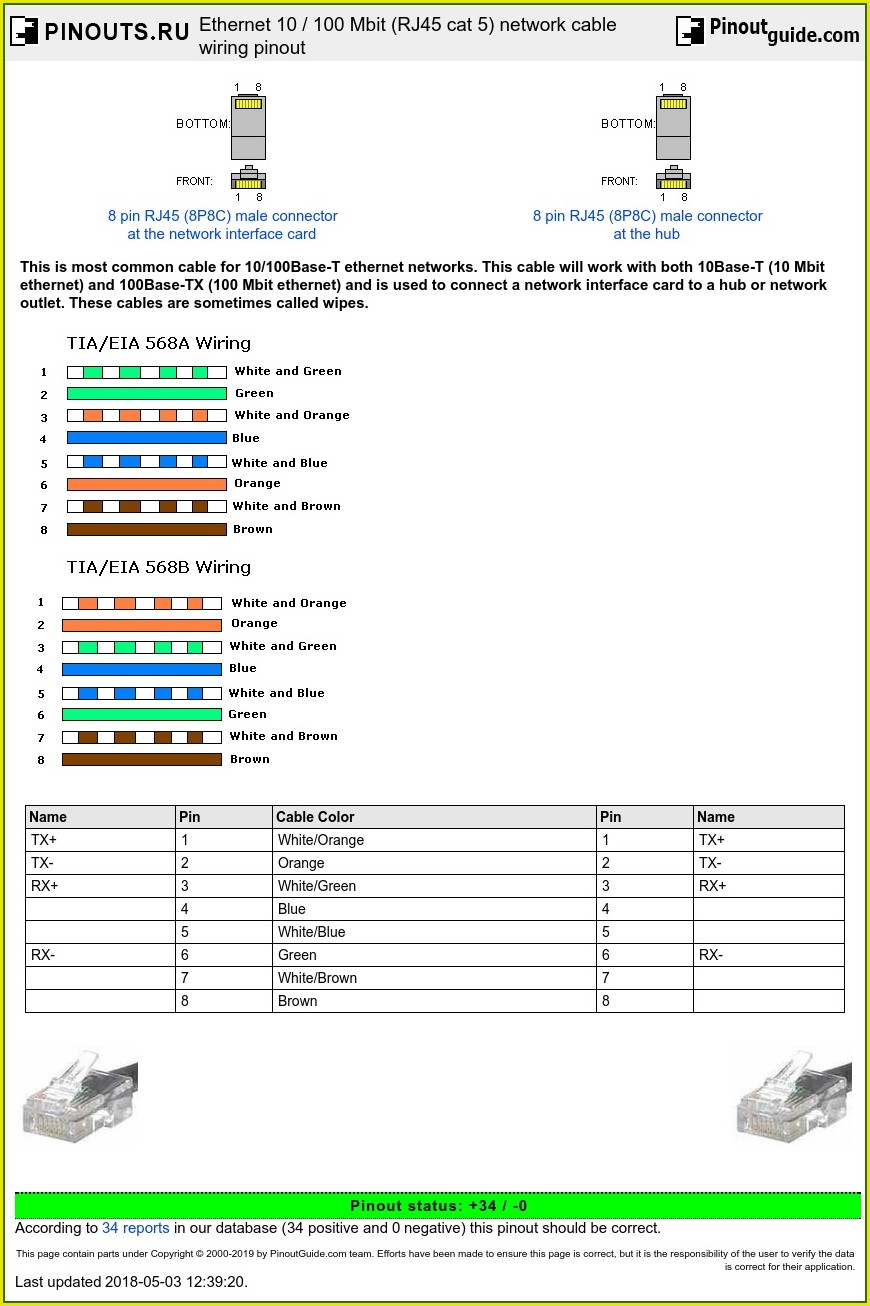

Pinout diagrams and wire colours for cat 5e cat 6 and cat 7. We look at the 568a and 568b color codes what they mean and why theyre important. Rj45 wiring pinout for crossover and straight through lan ethernet network cables. Otherwise you can use the more detailed rj45 pinout diagram 1 above. The information listed here is to assist network administrators in the color coding of ethernet cables. The t 568b standard is the most commonly used.

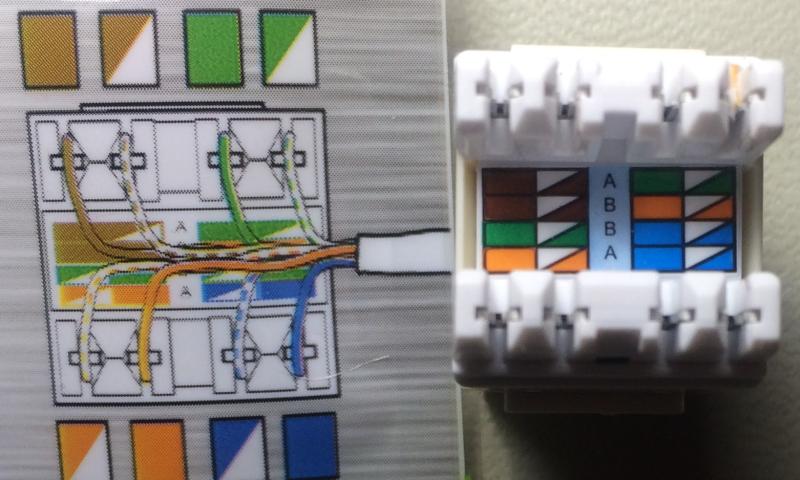

Registered jack 45 rj45 is a standard type of physical connector for network cables. Do not untwist them down the cable further than where the jacket begins. This video lecture explains the pins and wiring in ethernet cables and rj45 plugs. The wiring diagram is shown with the hook clip on the underside. The wiring diagram is shown with the hook clip on the underside. The wall jack may be wired in a different sequence because the wires may be crossed inside the jack.
Use this information at your own risk and. An initial take a look at a circuit diagram might be complex however if you can check out a subway map you could read schematics. Figure 2 is the wiring scheme for the plug side of an rj 45 connector in accordance with t 568b standards. We also discuss when and why to use a straight through ethernet patch cable color versus an ethernet crossover cable wiring color code. Collection of cat 6 wiring diagram rj45. A wiring diagram is a streamlined standard photographic depiction of an electric circuit.
The t 568b standard is the most commonly used. Rj45 wiring diagram of eiatia 568b ethernet cable the pin description and names are the same as that for eiatia 568a ethernet cable. Convert rj11 to rj45 wiring diagram a beginner s overview of circuit diagrams. Please be aware that modifying ethernet cables improperly may cause loss of network connectivity. You should aim to leave as much of the cable twisted as possible. Basic rj45 pinout wiring diagram t568b as you insert into the rj45 connector note tab is at the back this is a simpler version.
Rj45 connectors are commonly seen with ethernet cables and networks.
