The 7610 acr is not intended to carry starting currents. Si acr automatic charging relay 1224v dc 120a blue sea systems marine battery switch wiring diagram by anna r.
Blue Sea Systems 7610 Si Acr Automatic Charging Relay 12
Si acr wiring diagram. Higginbotham published february 14 2019 full size is 1472 1269 pixels. Start lockout for two engines the benefit of serrated flange nuts blue sea systems dual circuit battery switch selecting the appropriate fuse rating when installing the 120a si acr battery isolators and automatic charging relays overcoming dropout of house electronics during engine starting acr operation automatic charging relay an alternative to multiple output charging systems automatic. Use a battery switching system with a combine batteriesparallel function if batteries may need to be combined for emergency starting. The wiring diagram illustrated on the back page represents a common installation and is not meant to be a guide for wiring a specific vessel. How does an acr work. An acr is intended to keep a load from discharging both of the batteries.

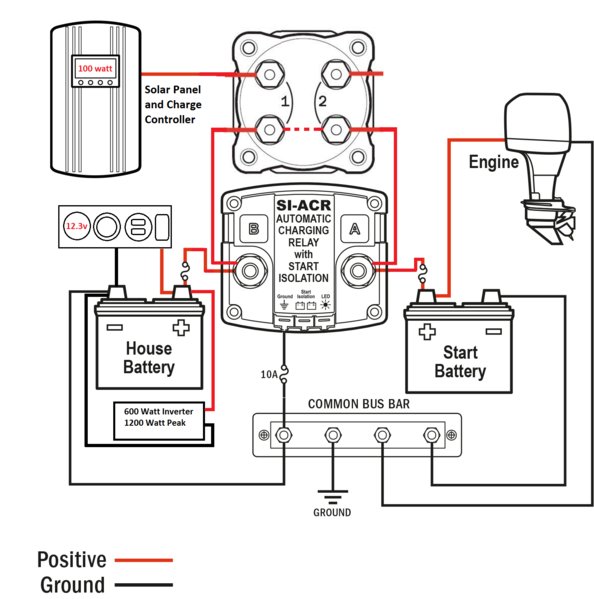

The wiring diagrams illustrated on the back page represent common installations and are not meant to be a guide for wiring a specific vessel. The acrs contacts then connect and the acr applies the charge to both batteries. Si acr automatically combines batteries during charging isolates batteries when discharging and when starting engines. Si acr automatic charging relay with start isolation. An acr senses when the voltage of either of the batteries rises to a level indicating that a charge source is active 130v for 2 minutes. Disconnect battery connections before beginning the installation.
The dual circuit plus battery switch simplifies the switching of two batteries to off or on while still providing battery isolation between the engine and auxiliary battery.
