Installation Instructions For 5 Inch Tachometer
Tacho wiring diagram. Wiring volvo penta diesel panel need help. Wiring the tachometer connect the tachometer wires as shown in the wiring diagrams below which are typical installations. As a safety precaution the red wire of this product should be fused before connecting it to the positive side of switched power source. The red wire is for the ignition switch. Volvo penta gi e wiring diagram for engine and instrument panel. Variety of yamaha outboard tachometer wiring diagram.
It reveals the components of the circuit as simplified shapes and also the power and also signal connections in between the devices. The transistor is working like a relay switch to supply current for tacho to sense engine speed and that relay switch is controlled by coil or igniter. Tacho sensor seems to be an inductive one and operates off the fuel pump drive gear. Connect a wire from pin 5 to a constant 12 or 24 volt source. Wire cutters wire strippers automotive diagnostic tool used for finding tachometer wire ratchet and sockets screwdriver drill. Follow this wire to a junction and attach the wire from pin 4 at this junction ie.

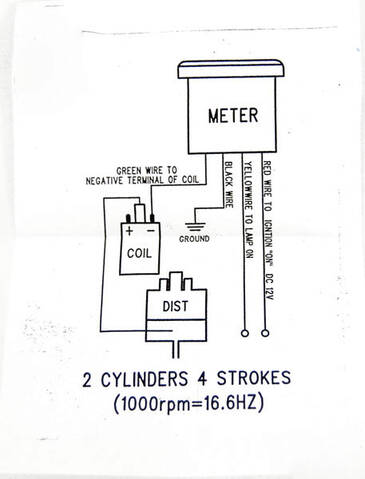

Connect the green wire to the negative post of an existing electronic coil or electronic ignition system using a tachometer adapter as a connector. In my case i first started with the figure a wiring but later figure b with the installation of the hei distributor in my jeep. Connect the wire from pin 4 to a switched 12 volt or 24 volt source. This article on how to wire an electronic tachometer doesnt have anything to do with project x other than that 57 is the granddaddy to super chevys chevelle. Volvo wiring diagram add on. For tachs without a shift.
Variety of autometer tach wiring diagram. Mine was salvaged from my old truck 3m quick splice connectors 14 18 gauge 410 walmart tools. Connect the white wire to the inside lighting switch which will illuminate the tachometer when the headlights are on. A wiring diagram is a streamlined standard pictorial representation of an electrical circuit. Volvo penta gi cable wiring diagram. Tachometer can be purchased from most any auto parts store for as low as 33.
Tacho sensing wire is connected to transistor emitter and transistor collector is connected to positive battery or ignition key. We recommend using a 4 amp 3ag fast acting type cartridge fuse littlefuse 312 004 or an equivalent inline with the red wire of our product for tachs that use a shift lite. A switched 12 or 24 volt wire can be found coming from the ignition switch. Refer to diagram d. It reveals the elements of the circuit as simplified forms as well as the power and signal connections in between the tools.
