Can someone send me some information and wiring diagram for this tractor. Changing your mg electrical system polarity is easy and cheap so dont even think about a polarity converter for your new radio.
Vintage Tractor Engineer Fitting Battery Leads The Wrong
Tea 20 wiring diagram negative earth. And wiring harnesses dot com lists a harness for the tea 20. 12 volt wiring tea20. Massey ferguson 240 service manual pdf ferguson 20 tractor products for sale ebay wiring 2 12v schematics wiring diagram. Are not shown but would be wired as for negative earth between chassisbattery ve terminal earth and either starter switch ve input independent of ignition key. The wire had been spliced taped and are in poor shape. The serial number is 37047.

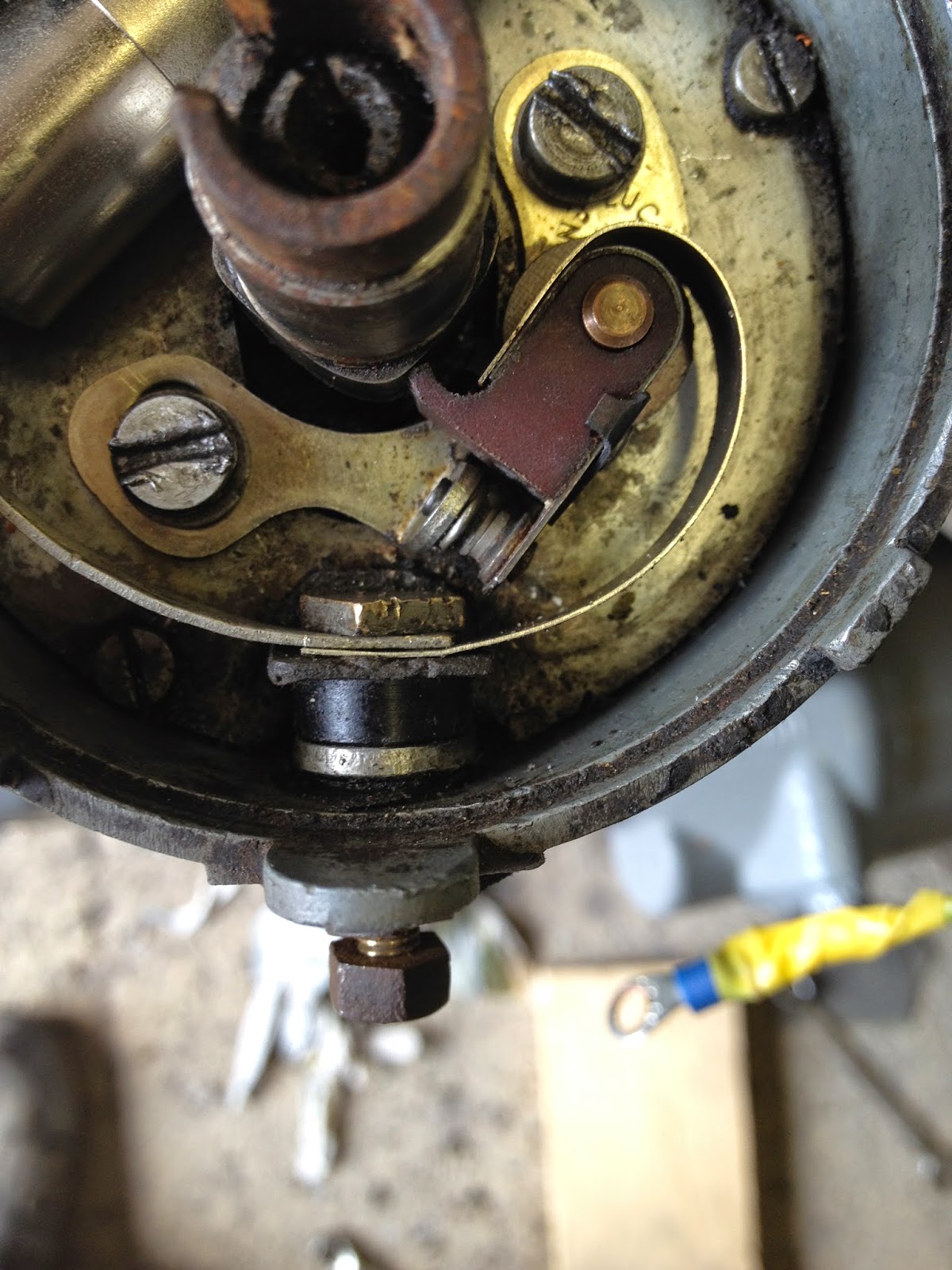

My tea20 is negative to earthground simply because i have pertronix electronic ignition which requires a negative earth system. Theres a wiring diagram for a tea 20 at the fena website. Log in to reply 2tractors 07 23 2014 054159. Determined the wiring diagram for the to 20 with indicator light was in fact incorrect. The red indicator light on te and to 20 models works the same way the charge indicator light on most cars and trucks operate. Wiring diagram for ferguson tea20 tractor serial tea477296 1955 petrol 4 cylinder standard engine.
It has red light 6 volt system. Mf tea 20 fuel system air intake 13 carburetors and carburetor kits fuel filters and other carb parts. Disconnect all battery cables from the batteries. Changing from positive to negative earth et 202. The positive earth society is for concours buffs. Ferguson tea 20 wiring diagram.
Taillights reversingwork lamp horn etc. I got a wiring diagram and manual. The correct wiring diagram is shown in figure 1 and the diagram previously posted on the web site has been replaced with this one. How do i figure out how it was wired. I ordered a new wiring harness. Ferguson tea 20 wiring diagram another image.
I had been hooking the negative ground to the negative battery as that was the way it was when i got it. Tea 20 wiring diagram for tractors converted to negative earth spark plugs firing order 1 3 4 2 1 cylinder is at the front 1 2 3 4. Fuel tanks air cleaners filters funnel assemblies air hoses air intake stacks pre cleaner assemblies breather caps choke levers shafts throttles fuel caps injectors fuel pumps governors more. Original tea horn. Anyone else should feel free to change. Wiring diagram ferguson te tea 20 6 12volt gasoline wiring diagram ferguson te tea 20 6 12volt gasoline engine w generator connections shown for both ammeter and dash light headlights generator ferguson tea 20 wiring diagram.

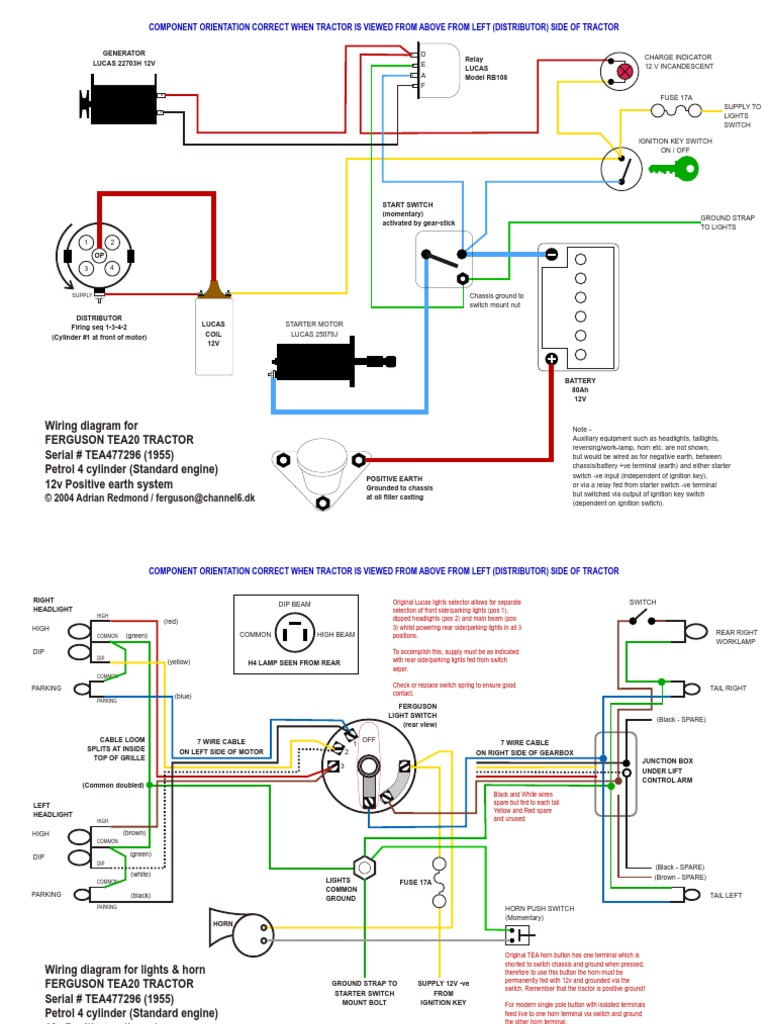

Wiring diagram ferguson tetea 20 6 12volt gasoline engine w generator connections shown for both ammeter and dash light headlights generator.
