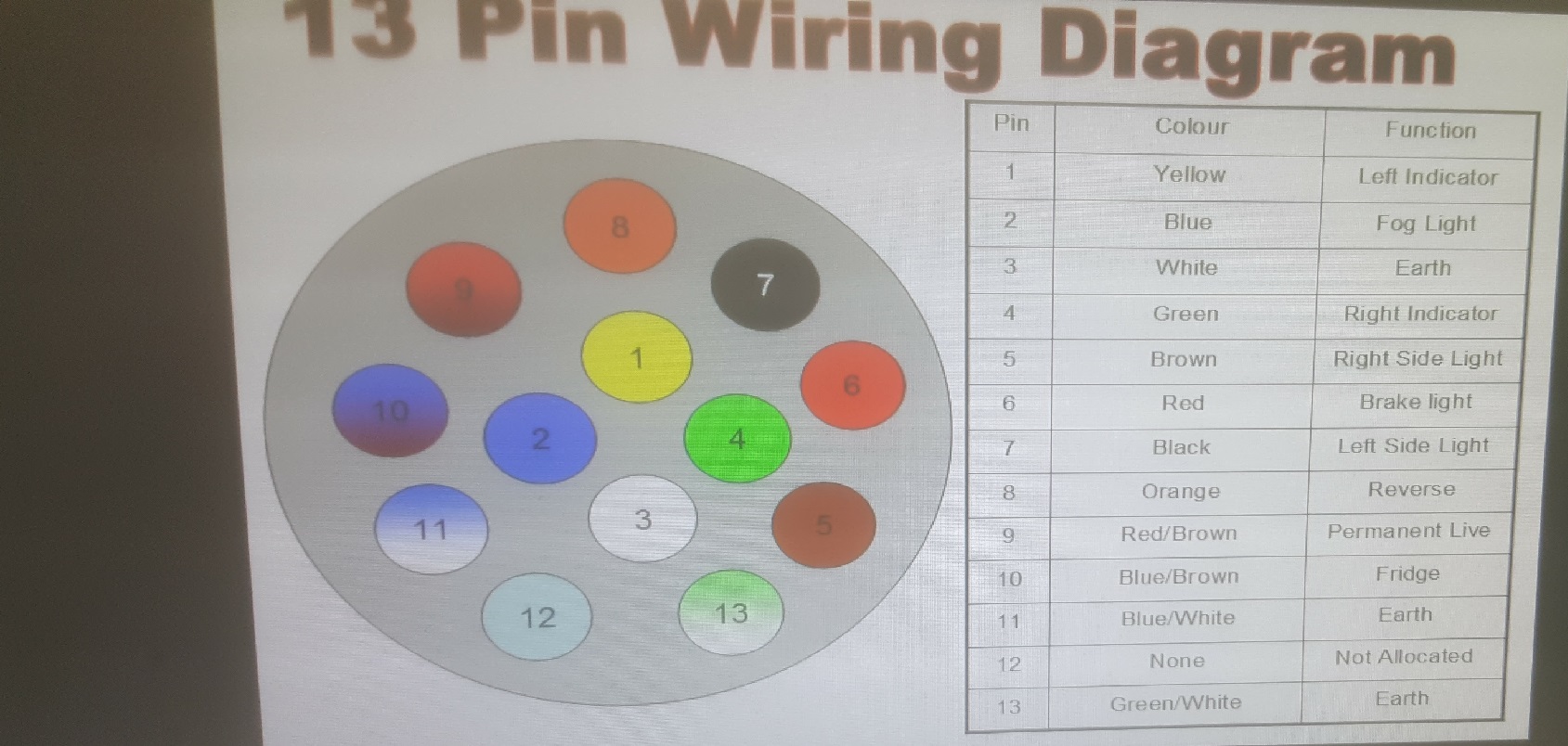

Apr 8 2019 explore johnny js board trailer wiring diagram on pinterest. You can use this socket with uk 7 pin plugs which are on all uk trailers and caravans but you need to use a converter which will split the 13 pin electrics down to two 7 pin sockets or one 7 pin socket depending on what you are towing.
Trailer Wiring
Trailer plug wiring diagram ireland. 4 pin trailer wiring diagram. Below is the generic schematic of how the wiring goes. Above we have describes the main types of trailer wiring diagrams. Various connectors are available from four to seven pins that allow for the transfer of power for the lighting as well as auxiliary functions such as an electric trailer brake controller backup lights or a 12v power supply for a winch or interior trailer lights. White pin for the ground. Need to know which color wire go to which post.
It may transfer electricity better therefore the connector is suggested for higher level electric in the vehicle. Trailer wiring diagrams trailer wiring connectors. We have an excellent wiring diagram on our website i will provide you a link so you can look at it. Note that this type of 4 pin connector is less common that 4 pin flat connector. This wiring diagram for trailer plug in ireland version is far more acceptable for sophisticated trailers and rvs. Blue electric brakes or hydraulic reverse disable see blue wire notes below in the trailer wiring diagram and connector application chart below use the first 5 pins and ignore the rest.
Here is the diagram for 7 pin connector. Traditional trailer with brakes use a 5 pin connector. The trailer wiring diagrams listed below should help identify any wiring issues you may have with your trailer. This vehicle is designed not only to travel 1 place to another but also to take heavy loads. Trailer connector wireing diagram. When wiring a trailer connector it is best to wire by function as wire colors can vary.
It will also become standard in the uk and ireland over the next couple of years on new trailers caravans etc. Various styles of connectors are available with four to seven pins to allow transfer of power for the lighting as well as auxiliary functions such as electric trailer brake control backup lights etc. 1 4 wire the first 4 pins white brown yellow green just like the 4 pin connector above. See more ideas about trailer wiring diagram trailer utility trailer. 7 way plug wiring diagram standard wiring post purpose wire color tm park light green battery feed black rt right turnbrake light brown lt left turnbrake light red s trailer electric brakes blue gd ground white a accessory yellow this is the most common standard wiring scheme for rv plugs and the one used by major auto manufacturers today. This report will be talking wiring diagram for 7.
Wiring diagram for 7 pin trailer plug wiring diagram 7 pin trailer plug ford wiring diagram for 7 pin flat trailer plug wiring diagram for 7 pin round trailer plug folks comprehend that trailer is a car comprised of quite complicated mechanics. This type of connector is normally found on utvs atvs and trailers that do not have their own braking system.
