This how to shows the steps to installing new can style solenoids to the ps654 electric worm gear winch from pierce. Quick demo on how to wire up the cheap universal 500 amp winch solenoids that can be found on ebay and amazon.
Heavy Duty 12v 24v Dc Winch Reversing Solenoid Relay 500a

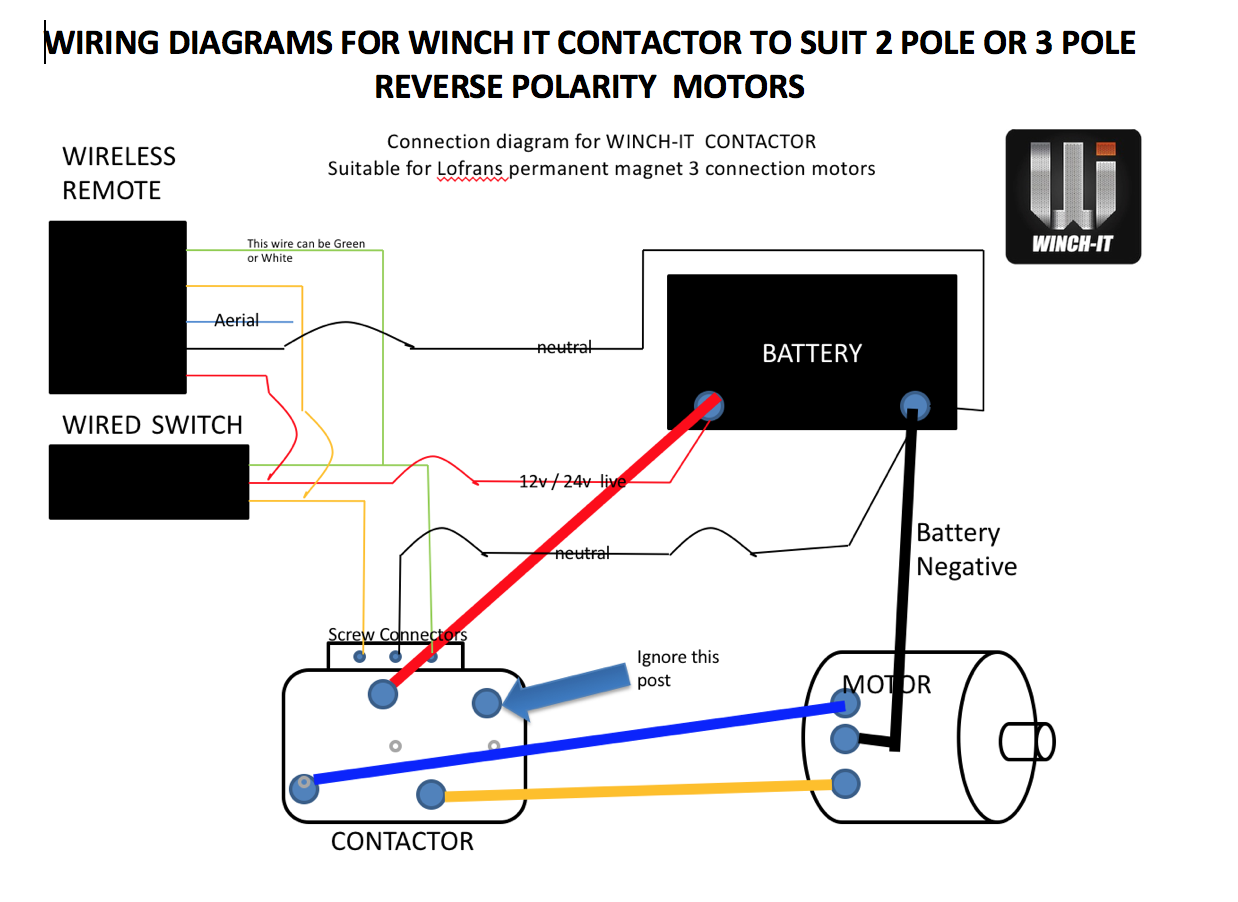

Zjsf 41x 12v solenoid wiring diagram. Easy connection wiring diagram with pictures supplied. It shows the parts of the circuit as simplified forms as well as the power and signal links between the devices. I had to browse youtube for wiring schematics of an albright contactor and fortunately the stud layout is the same. As fitted to latest 2020 winches. A wiring diagram is a streamlined standard pictorial representation of an electrical circuit. Cheap car switches relays buy quality automobiles motorcycles directly from china supplierszjsf 41 12v 4x4 truck accessories power starting relay heavy duty winch solenoid offroad all bright equivalent recovery enjoy free shipping worldwide.
You only need one of these. Variety of 12 volt solenoid wiring diagram. Easy connection wiring diagram with pictures supplied. Fasten these wires to the correctly labeled terminals on the solenoid by backing off the terminal nuts and securing the ring connectors over the terminal bolts. Wiring the solenoid to the winch and the switch is the final step in the installation process. I could understand that if this was a replacement for a specific winch but this is sold as a universal part.
The part number for the solenoids is p0375. For their own product. Will out perform and outlast your standard solenoids. New heavy duty winch relay solenoid 12v 500a 5000lb to 12000lb atv utv truck 4x4. Run the positive and negative motor wires from the winch to the solenoid. It reveals the parts of the circuit as streamlined forms and the power as well as signal links between the devices.
This one solenoid controls your winch in both directions. Suitable for all. A wiring diagram is a streamlined standard pictorial depiction of an electrical circuit. Collection of 12 volt winch solenoid wiring diagram. As fitted to latest winches. 12 volt heavy duty winch solenoid.
You will need two of those to. Installed with a smittybilt xrc8 in this case. 12 volt heavy duty winch solenoid. This one solenoid controls your winch in both directions. Will out perform and outlast your standard solenoids. Limited time sale easy return.
You only need one of these. Suitable for all.
