Once you have connected it to the ammeter you will then connect it to the alternator terminal. Vdo mounting bracket and nuts 2 1 5.
In Car Amp Meter

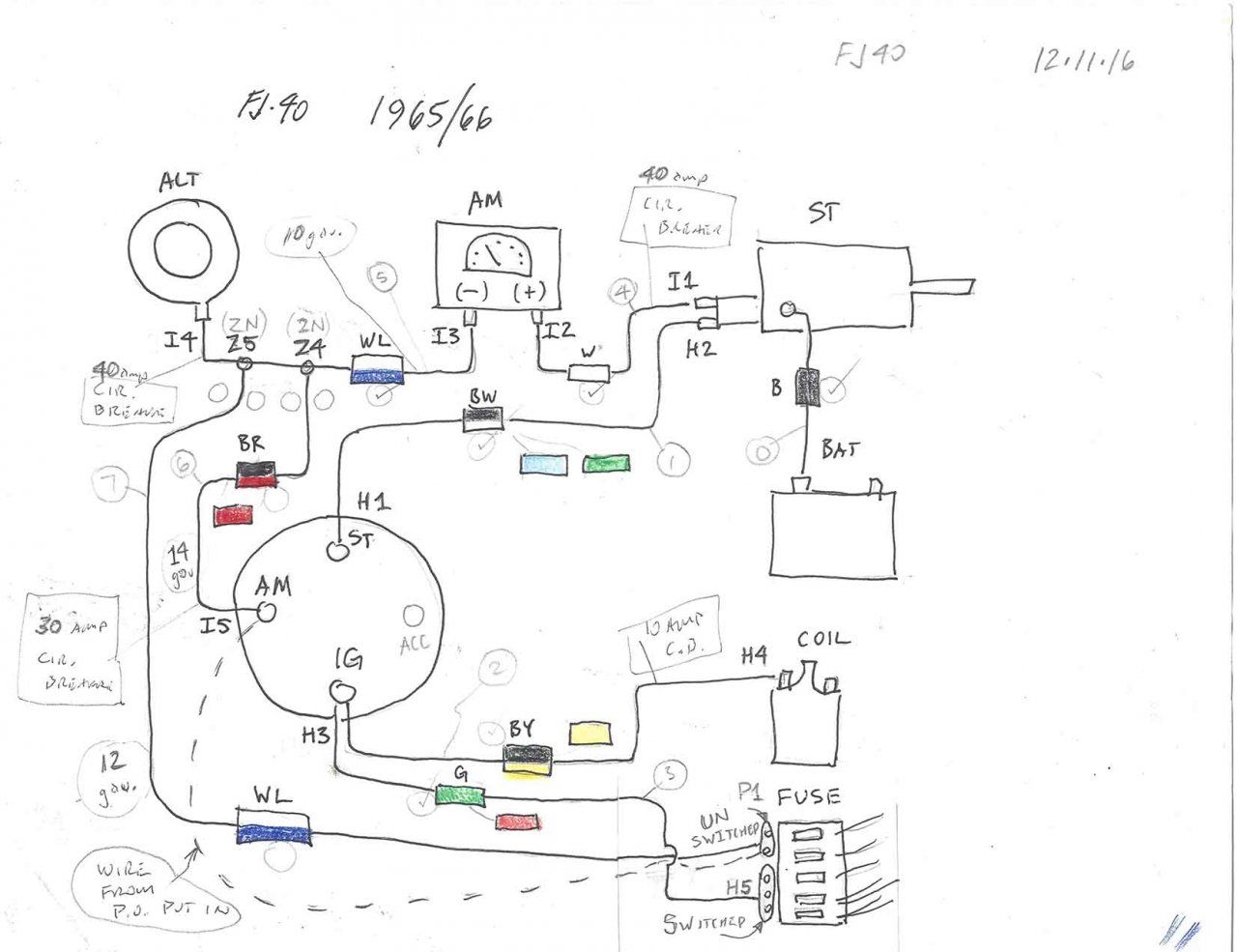

Ammeter gauge wiring diagram. Install an amp gauge in your car and you will instantly know the general condition of your vehicles electrical system. Wire minimum with an insulation temperature rating of 220 f 105 c minimum from the battery terminal on the starter solenoid to the right terminal on the ammeter see wiring diagram. Step 4 connect the ammeter to the alternator. Most boats make provisions in their wiring for adding in. Wiring diagram voltmeter car new digital volt amp meter wiring. Also known as an ammeter this is one of the instruments that has largely been replaced with an idiot light.
The yellow wire b coming from the charge side of the ammeter goes through the wiring harness and ties into the 10 awg cable which goes between the hot side of the starter solenoid and the alternator. Refer to the boat and engine manuals for details of the wiring system and ammeter installation wiring diagrams. Installing water temp voltmeter oil pressure gauges aux auxiliary how to duration. Do not deviate from assembly or. Take your other piece of red 14 gauge wire and connect it to the other terminal of the ammeter. Amp gauge wiring 1 always disconnect the ground lead from the vehicle battery before wiring any gauge.
The points at which the two wires connect to the solenoid to alternator cable are about 23 18 apart. Volt amp meter wiring diagram collections of digital volt amp meter wiring diagram lovely digital multimeter. Read these instructions thoroughly before making installation. Wiring diagram for ac amp meter fresh ac ammeter wiring diagram. Lamp socket push in wedge type 1 3. Using an alternator with higher output capacity is dangerous and could cause a fire.
With your positive battery terminal now connected to the ammeter you are ready to connect the next wire. Wiring diagram 12 volt amp gauge new wiring diagram for ac amp meter. Without it you will not know there is a problem until it is too late. 2 classic instruments amp gauge should only be used on vehicles with alternators rated at 60 amps or less. Light bulb 12 volt ge. Ammeter 2¹₁₆ 52 mm diameter 1 2.
The primary purpose of an ammeter is to indicate the charging rate of the generating system and to check on the current of the boats lights accessory and ignition equipment. How to wire an ammeter and shunt duration. The amp gauge. 158 or equivalent 1 4. Installation instructions 1 ˇ ˆ.
