How to wire tbs crossfire nano transmitter to a flight controller. Which is tx which is rx.
Tbs Whitenoisefpv Unify Crossfire Nano Mounting Board

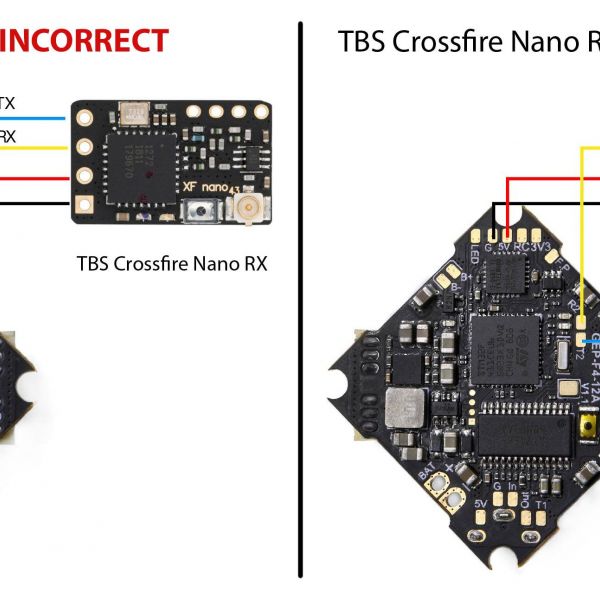

Crossfire nano wiring diagram. Channel 2 goes to the tx uart on the flight controller. In todays video we will quickly run through wiring installation and programming of your tbs crossfire nano rx. Solder rx wire from crossfire to sbus pad. I successfully performed the hardware mod and have managed to set the taranis to the appropriate settings. Hi guys i have a racerstar tattoo f4s board and am about to install a crossfire nano receiver in place of my xsr. Note that ive just updated the diagram and instructions in my post above to make use of uart3 instead of uart1 for the crossfire nano.
Yellow wire the video source for your vtx usually on the flight controller sometimes a direct feed to. Solder tx wire from crossfire to tx1 pad on the back side of the fc 3. Green wire from the vtx tx to channel 3 on the crossfire nano. You connect channel 2 to tx1 on the bottom and channel 1 to the sbus pad which is rx1. In the example below we are using uart1. Crossfire nano wiring question.
Crossfire crossfire nano setup tbs tutorial. Crossfire nano with tbs unify pro32 nano. This is because i forgot that uart1 is shared with sbus and so has a built in inverter so that wont work with the uninverted signal of the crsf protocol. Set uart 1 as crossfire. How to setup tbs crossfire micro tx nano rx in less than 15 minutes duration. I have also set my betaflight settings according to this article and iflights own wiring diagram for the crossfire nano.
The 7 wires from the tbs unify pro 32 nano are as followed. White wire from the vtx rx to channel 4 on the crossfire nano. Icantfly january 10 2019. T b s c r o s s f i r e r c s y s t e m revision 2019 03 24 a d a p t i v e l o n g ra n g e re mo t e c o n t r o l s y s t e m the tbs crossfire xf system is a rc link system made for fpv enthusiasts. To get the crsf protocol to work you need to use the same uart. There are tons of videos that drag on and on about this receiver but if you want.
My crossfire tx module is bound to the receiver and my rssi reads 99 on my taranis telemetry screen. I am currently wired up very similar to the board diagram attached with gps on uart6 but i am currently utilizing the led pad as a softserial. Flight controller wiring for beginners 2020 update duration. Gal kremer 39631 views. Quick start guide tbs crossfire nano rx revision 2018 02 16 th e cr o ssf i r e na n o r x h a s m u c h o f t h e s a m e f e a t u r e s e t a s t h e tb s cr o ssf i r e mi c r o r x b u t o n a s m a l l e r f o r m f a c t o r a n d wi t h o u t c o n n e c t o r s. Channel 1 goes to the rx uart on the flight controller.
