The set2e is a direct replacement for a danfoss randall set2. Confused by danfoss wiring diagram.
Central Heating Controls And Zoning Diywiki

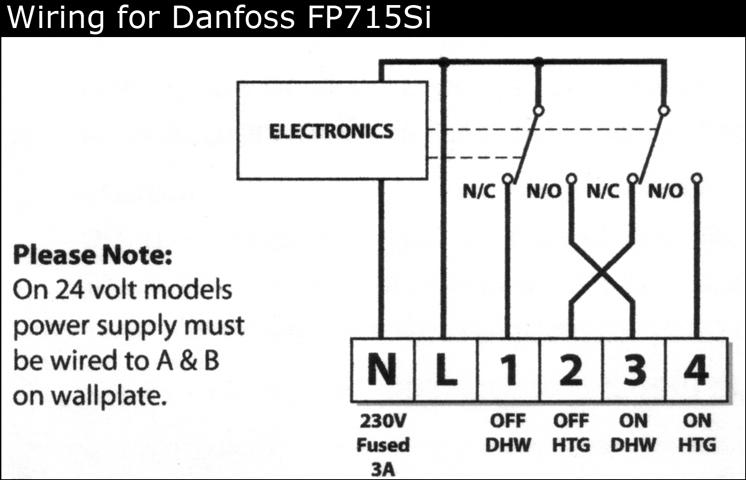

Danfoss y plan wiring diagram. V4073a y plan how a mid position valve operates within a y plan heating system how a w plan heating system operates faq pump overrun wiring diagrams for s plan incorporating a st9400 programmer. Here coloured wires indicate the permanent mains supply to the boiler and programmer. This diagram shows the wiring layout using the most typical components. Danfoss central heating wiring diagrams for more information see the danfoss wiring guide. Central heating wiring diagrams danfoss central heating wiring diagrams 3 port mid position valve please note we do not accept any responsibility for the accuracy of any of the diagrams literature or manuals and information may have been supercededamended. Only three wires coming from wire to wiring box red yellow blue.
Contact the danfoss randall technical services department for details. This video covers the wiring and electrical operation of a y plan system. Danfoss y plan problem sign in to follow this. Hi guys got to wire a y plan monday and am a litle unsure. The second one that i visited had a room stat wired incorrectly. L to l.
Wiring diagrams and further information continues below. I have checked the wiring against the danfoss wiring diagram and they seem to be wird correctly. Plumber has supplied the danfoss. Central heating wiring diagrams. The wiring diagram shows an external pump. 3 dec 2010 messages.
Danfoss y plan problem. From looking at the diagram y plan red should go to 1 live yellow should go to 2 switched live blue should go to 4 neutral is this correct. If the unit is to be used in association with a 6 wire honeywell y plan a special wiring diagram may be required. Jackthom 6 nov 2011 5. Sw l to nc. Work must be completed by qualified electricians or heating engineers.
