A wiring diagram is a simple visual representation of the physical connections and physical layout of an electrical system orewd circuit diagrams of each electrical system wiring route diagrams and diagrams showing the location of relays etc. Banggood drl relay harness control switch duration.
Switchback Led Driver

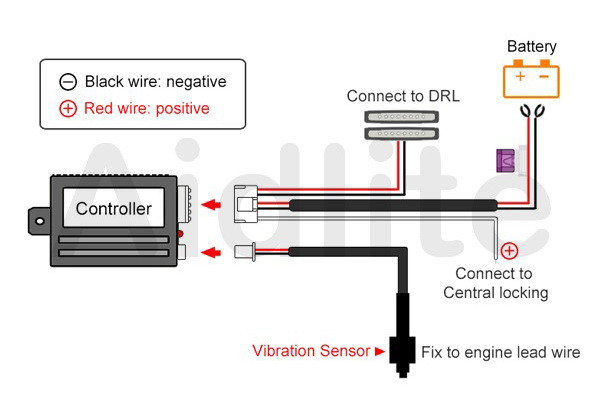

Drl controller wiring diagram. One of the key features of our headlights is to have the ability to run the drl strips in the day without having to activate any of your lighting controls manually. Once the control coil has ground the contacts close and the relay provides power to the drl lights. Come with safety fuse with the anode wire. Great add on item for controlling headlamp drl or side lights. Allow you to connect your drl lights so that when you start the car the lights turn on and then when you turn you headlights on the drl will turn off. Red is main power wire it must be connected directly to the battery positive terminal you will have to extend that wire as it wont reach the battery simply use proper gauge wiring and run a wire from the battery to the positive wire of the drl.
Salar navaei 3397 views. Run the wires from the drl box to the appropriate locations. The drl controller should be sealedwaterproof so you shouldnt need to put it in the fuse box but thats up to you where you want it to go. 1991 suzuki samurai 13 fuse box diagram 1991 suzuki samurai 13 fuse box map fuse panel layout diagram parts. The way to do this is by wiring the harness that is included with your headlightsdepending on the headlights feature you get there will be two types of drl harness. Easy wiring please follow the diagram on the back of controller.
The drl system is different. Black goes to ground i used the battery ground but you can also use any good chassis connection red for battery positive white to headlight harness redblue wire orange you dont use on. Whats a drl or day time running light device. Normally a drl system is in the form of. The bcm looks at the input from the ambient light sensor. In addition any local auto electrician should be able to set this up for you if needed.
A drl is a safety car lighting device specifically assigned to moving vehicles for increasing the conspicuity of the vehicle during day time especially when the daylight is accompanied with fog or during dull overcast daysit is normally fixed just beside the headlamps on either sides. If it sees daylight and the parking brake isnt set the bcm provides ground to the control coil in the drl relay. A number of our products include daytime running lights and below is a diagram for customers interested in wiring them up via a relay to allow them to turn off when the low beam headlights are turned on. Most of the time when adding these drl controllers you take the plug off the back of the headlight and tap into the wire you need on that plug. Step 4 finally the 2 wire harness the red and black wire. Wiring drl halos in different way on jeep tj 1997 2006 duration.
For headlights with activation light and sequential signal.
