For each additional hive multizone kit you will receive an additional thermostat and receiver. Dual channel the hive receiver is double insulated so doesnt receiver need an earth connection.
Hive Multizone Install With System Boiler Diynot Forums

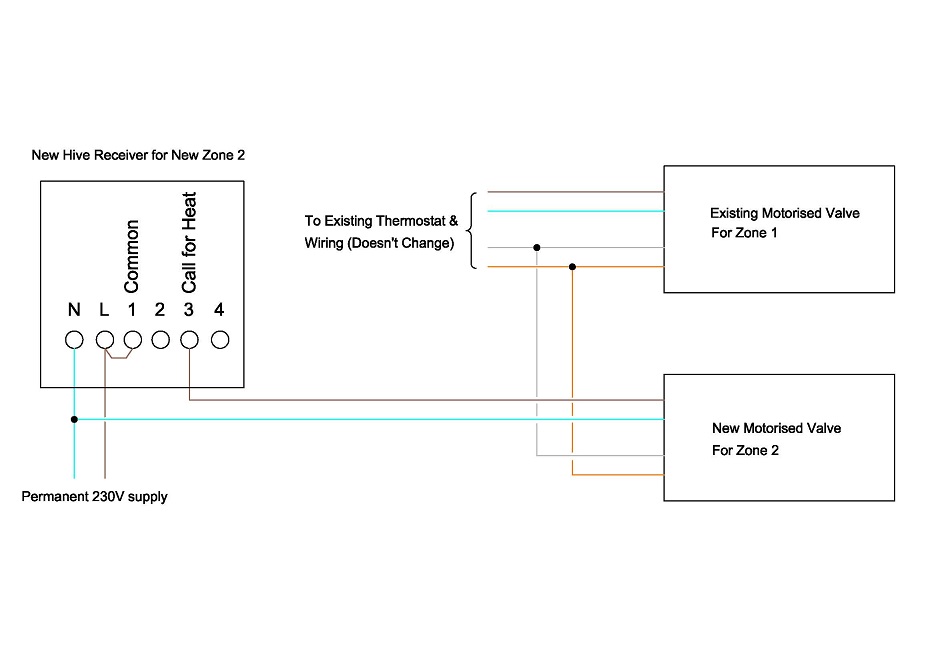

Hive multi zone wiring diagram. Bs7671 iee wiring regulations part p of the building regulations and any relevant technical operational procedures. For households that have more than one heating zone. I tried to install and replace the myson thermostat with the hive multi zone receiver but since there are only two wires coming out how do i do the install in order to comtrol the. Designed to work with the hive active heating and the hive hub. In order to have hive multizone you will have need to purchase hive active heating which contains a thermostat receiver and hub. For info i have a wiring diagram of the wiring centre and the original back place for the receiver which i have now reinstated until sorted as i will only have upstairs heating any assistance would greatly received.

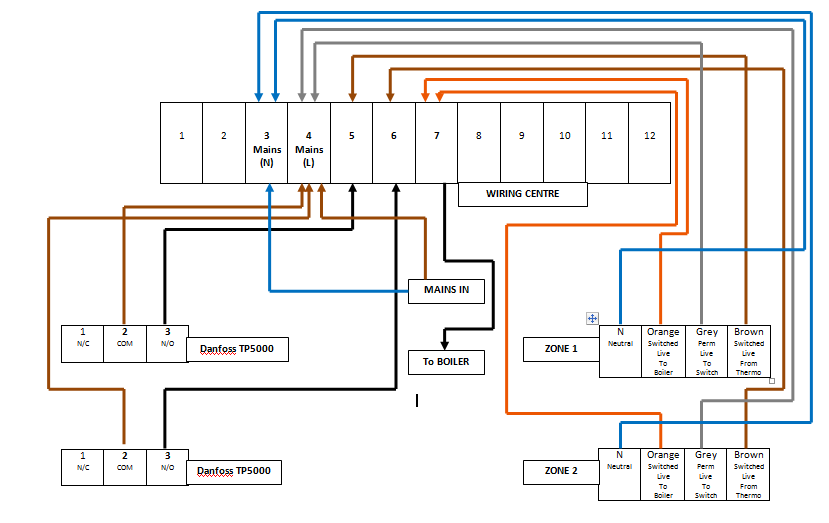

The wiring must comply to the current editions of bs7671 iee wiring regulations part p of the building regulations and any relevant technical operational procedures. Now found the wiring centre diagram still on the same thinking to loop a wire on stat 1 stat 2 at the wiring centre l and 3 and remove the programmer then to feed a live and neutral to the multizone back plate and connect 3 heating on so has just 3 connections for zone connect the dual zone as original. Nest vs hive which is the best smart thermostat for you duration. Features geolocation to enable heating alerts and control heating from a mobile tablet or. Wiring hive thermostat to combi boiler duration. Once a hive active heating thermostat has been purchased for the first zone the hive active heating multizone can be added to control extra heating zones.
The hive receiver is double insulated so doesnt need an earth connection. For each additional hive multizone kit you will receive an additional thermostat and receiver. Youll find a tether on the backplate to secure an earth wire if needed. Youll find a tether on the for conventional backplate to secure an earth wire if needed. Pete combicert 8889 views. In order to have hive multizone you will have need to purchase hive active heating which contains a thermostat receiver and hub.
Thanks for rating this article. Ive followed the wiring diagram but when i press the central heating button on reciever the boiler does not fire up as it says it should in the instructions.
