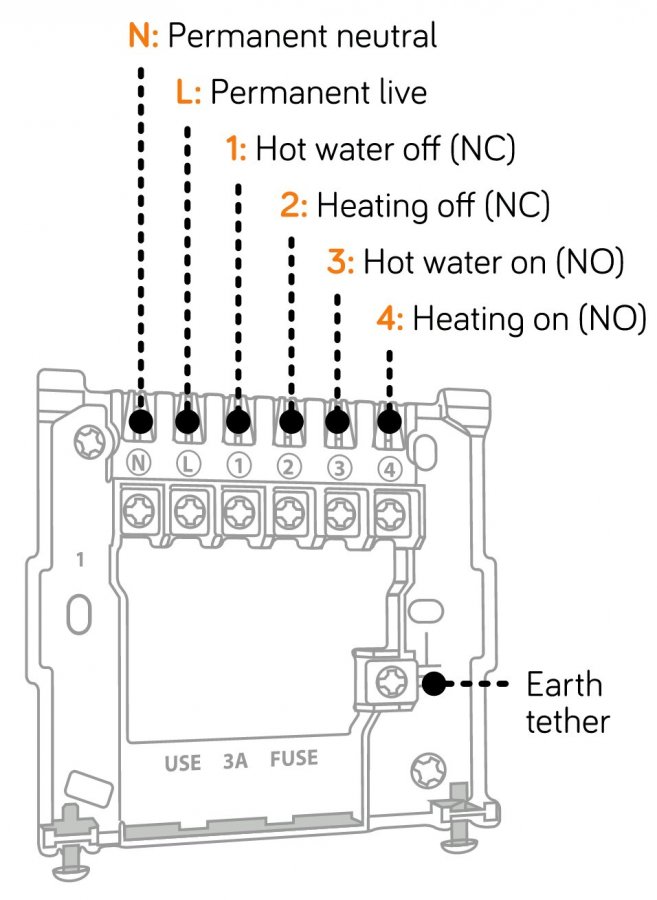

Hive slr 2 wiring diagram. Also a wire from from terminal 1 on the boiler switched live in to connect to terminal 4 on the hive. Dual channel the hive receiver is double insulated so doesnt receiver need an earth connection. Weve created a guide for installing your hive active heating which you can download here. For a quick installation follow the steps in order we recommend that you install hive active heating in the order shown in the diagram below. The hive receiver is double insulated so doesnt need an earth connection. Looking at the wiring diagram in the manual.
Op remove the link coloured yellow on the diagram. If you need to contact hives technical support team during the installation you can do so on 0800 980 8614. You may need to run a separate bit of te for this dont forget to connect up the earth at both ends. I think you need to. This is the simplest route and should ensure a quick and efficient setup. The wiring must comply to the current editions of bs7671 iee wiring regulations part p of the building regulations and any relevant technical operational procedures.
Hi i have looked at you boiler make and model i have download the install manual and on page 28 i can see the wiring diagram from this i can see that you will need to a bit of work to get hive installed firstly some where there will be a switch that is connected to your boiler and you will need find this and you will need to run some new cable to the hive receiver this is the part that the. 2 connect the hive heating on to rt 230v ac room thermostat at x1 and hive common or hot water off to l at x1. Youll find a tether on the for conventional backplate to secure an earth wire if needed. 1 remove the bridge connection on x106 for 24vdc room thermostat. 1 3 2 4. Youll find a tether on the backplate to secure an earth wire if needed.
You need a wire from terminal 2 on the boiler 230 out to connect to terminal 1 on the hive.
