1 bottom view of all relays 2 all relays must be diode suppressed n1n 2o nc no com trig gnd 12 volt from 87a 85 transbrake battery ground 86 87 30 86 87 87a 85 battery ground battery positive fused 20a fused and switched 12 volts lts. Stainless steel race hose.
Hella Ssr Relay Fuel Pump Control Issue G4 Link Engine

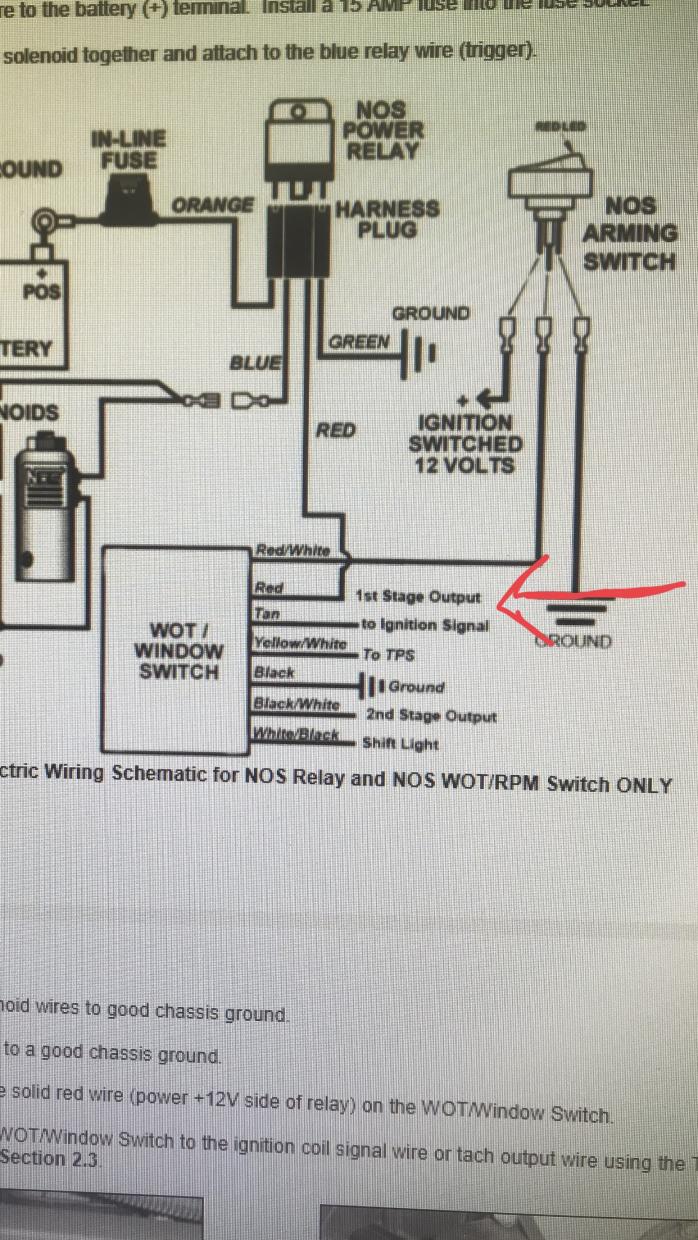

Nos relay wiring diagram. Wiring multiple stage nitrous systems and timing retard devices can become quite confusing so to simplify our wiring schematic well look at a single stage system without any external devices. 1 bottom view of all relays 2 all relays must be diode suppressed n4n 2o n4n 2o nc no com trig gnd 12 volt from transbrake battery ground. Your 1 source for everything nitrous. Lightweight braided black nylon hose. Wiring with and without a progressive controller transbrake tyco 75 amp relay schematic nos launcher holley high current nitrous solenoid driverdouble throw 60 amp relay pn the double pole double throw relay can be used to control a number of different accessories in an auto motive wiring system however we are concerned only with. The nos progressive controller is a 2 stage digital nitrous controller.
These wiring diagrams will help you wire up your nitrous system or nitrous accessory. Stainless steelptfe nitrousfuel braided lines. Toggle navigation 254 848 4300 speak with a nitrous expert m f 830am 530pm cst. Nos mini 2 stage progressive controller pn 15974nos progressive staged nitrous oxide injection features. If you are upgrading your existing system do not follow the wiring diagram from your original instructions. The power contacts in the relay will carry a maximum of 30 amps.
A n adapters fittings. Free i s educational videos. It has an ultra low activationrelease time. Includes nitrous purge nitrous bottle heater and dedicated fuel system. Originally designed to control the high current switching loads of nitrous solenoids this solid state relay can also be used to control other high current devices such as electric water pumps trans brakes line locks. The nos power relay is designed to eliminate the high amperage current from damaging control components such as switches microswitches shift handle buttons etc.
Nos have addressed the need for a reliable rugged and affordable relay for controlling various electrical equipment on a race car. Nitrous fuel lines. Find a good place for nitrous controller such as the nos mini two stage controller nos launcher or thewiring diagram for n 2o with transbrake nos pn nos pn notes. By john heard last updated jan 4 2015. Single stage nos system with transbrake interrupt relay. Single stage nos system with transbrake interrupt relay msd window switch and dynotune delay timer.
Wiring diagram for 2 stage n 2 o with transbrake nos pn 15838 30 notes. The ramp time programming ramp time is adjustable up to 10. It combines a tps sensing switch two rpm window switches and two progressive timers all into one unit.
