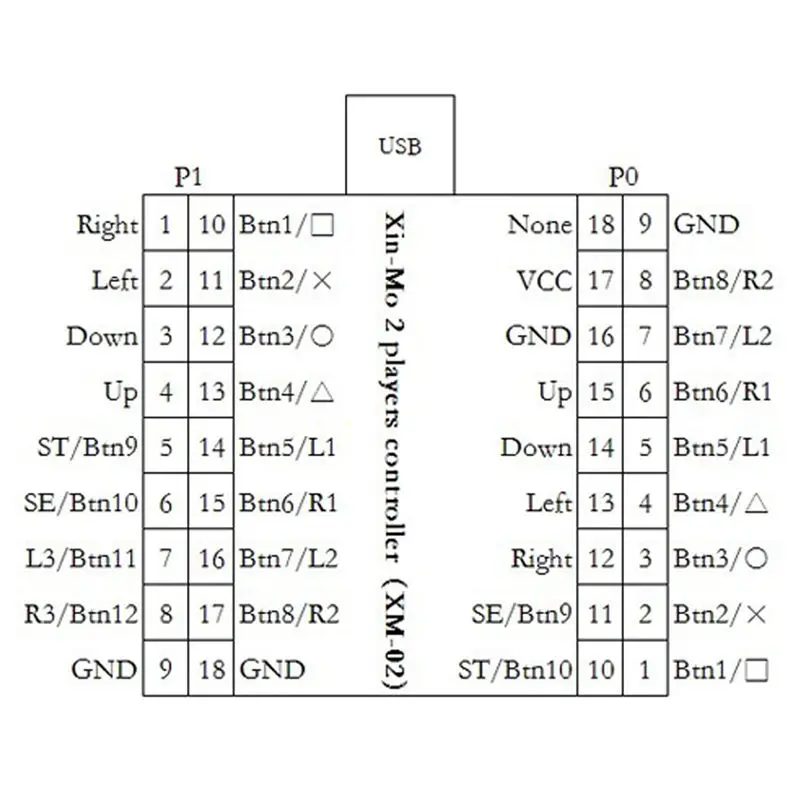

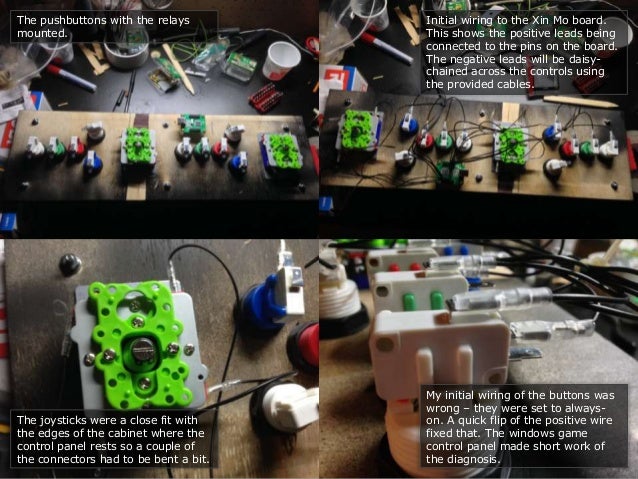

Xin mo controller wiring diagram. Xin mo is our companys name. 2 joysticks with 4 each 1 for each direction and 22 buttons. This xin mo 2 player arcade controller board is simply plug n play and will work with 1 player arcade joystick buttons arcade controller wiring kit no9. Windows will recognize them as 4 different joysticks with 44 different buttons. Please remember the sign of xinmotek brand beware of imitations. The original xin mo has product id 0x05e1.
The full name is guangzhou xin mo technology co ltd. The xin mo and the clones have same vendor id 0x16c0. 2 player arcade xin mo retroarch emulation station controller fix duration. 6 foot usb cable. This two player usb controller recognizes as two separate player joysticks with a total of 30 inputs two joysticks with four directions each and 22 buttonsinputs click here for the 1 player xin mo wiring diagram. If you are building a quad panel 4 player simply use 2 xin mo encoders.
Black cable serves as floor exactly like in every other apparatus. Arcade controls on. Wiring diagram can be downloaded here. We found that someone used our company name as a trademark to take a ride. According to xin mo usb wiring diagram there are just four wires used inside the cable. Complete tutorial on everything you need to get them up and.

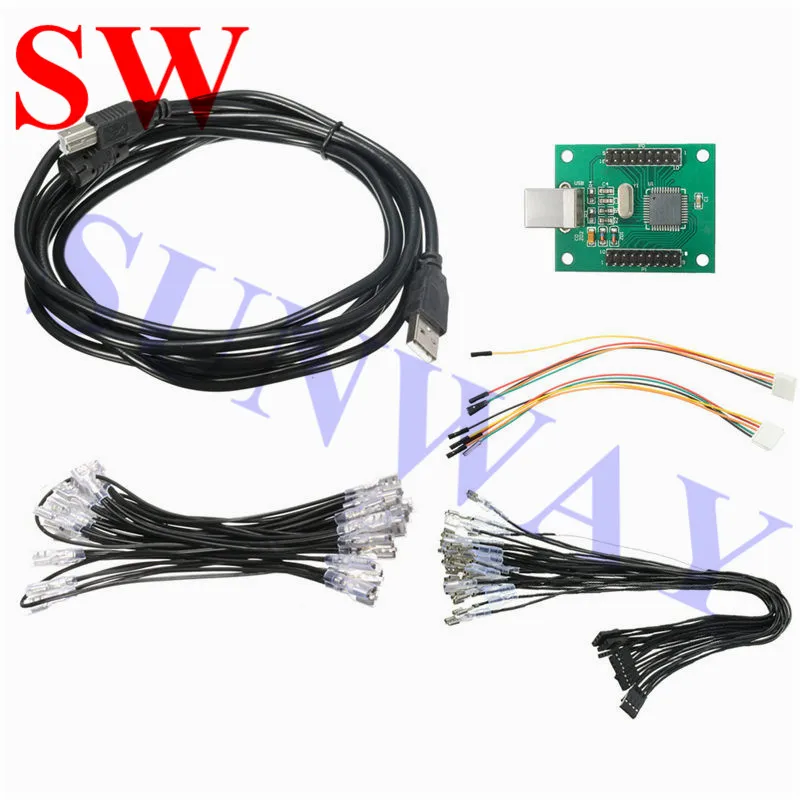

Xin mo xm 2 player keyboard encoder with usb cable wiring kit windows linux mac ps3 android click here for xin mo 2 player wiring diagram. This simple controller is recognized by windows as a plug and play controller with 30 inputs. Wiring xin mo controller for arcade bartop duration. The red one is to get positive cable with dc ability of 5 liter. File during compiling i have errors about xinmo. Typically it utilizes black green red and white cable colors.
Reply to 20 pin xin mo wiring diagram set up on fri 24 feb 2017 165031 gmt at stuntstein i still trying to compile the krenel but at the end it cannot create img. Mine and subz clone has pid 0x75e1. Only xm 02dual players game controller has fakes in the market so far. Xinmotek is our only trademark. Gregs clone has pid 0x05e0. At graboid the original xin mo controller works fine because the fix for joystick upleft is already included in the linux kernel.
